SE615 Conductivity Sensor | 2 Graphite electrodes | Memosens | 225 mm | For water and wastewater treatment

Skip image gallery
Length
Product number: SE615/2-MS
Description Technical details Downloads Use cases Blog posts

Description

SE615 Conductivity Sensor | 2 Graphite electrodes | Memosens | 225 mm | For water and wastewater treatment

Reasonably priced sensor for water and wastewater treatment applications.

  • Perfect galvanic isolation thanks to Memosens technology
  • No influence of humidity in the connector
  • Precalibration in the lab
  • Digital data transfer
  • Integrated sensor diagnostics
  • low maintenance
  • Integrated temperature detector
  • 2 graphite electrodes

Large measuring range thanks to electrodes made from low polarized special graphite. Designed for MemoRail applications.

The SE615 conductivity sensor with Memosens connector system has 2 graphite electrodes and requires low maintenance. The integrated temperature detector provides automatic temperature compensation during calibration and operation of the sensor. The sensor is designed for simultaneous measurement of conductivity and temperature in industrial processes.

Applications
Water/wastewater treatment.

We look forward to hearing from you!
Contact Us

Technical details

Measurement Parameter: Conductivity

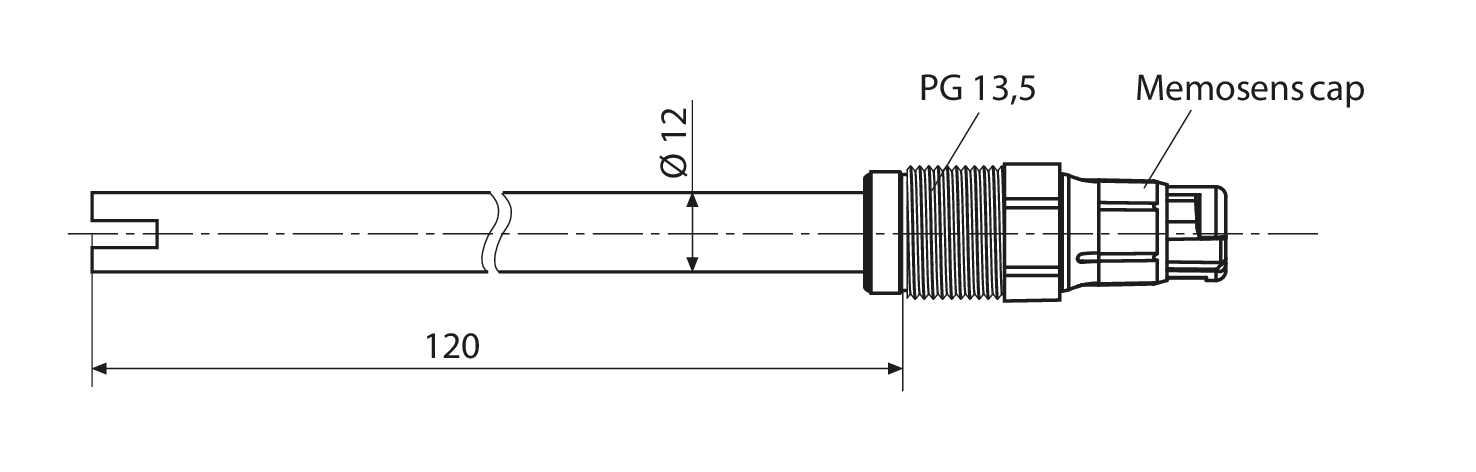

Length: 225 mm
Connector: Memosens
Measuring Range: 10 µS/cm … 20 mS/cm
Process Connection: PG 13.5
Temperature: –5 … 80 °C ( 23 ... 176 °F)
Temperature Detector: NTC 30 kΩ
Body Material: PSU (polysulfone)
Measuring principle: 2 electrodes
Pressure: Max. 4 bar
Membrane material: Graphite
Signal Transmission: Memosens

Downloads

Manuals

[16286] User Manual (DE, EN, KO)
Memosens Cable CA/MS
Version 09
[4501] User Manual
SE615 Memosens 2-Electrode Sensor
Version 02

Brochures

[13209] Brochure
Memosens - The complete solution for smart sensor applications.
[13395] Brochure
Sensors - For measuring pH/ORP, conductivity or oxygen. Digital or analog.

Data Sheets

[2814] Data Sheet
SE615 Memosens 2-Electrode Sensor
Product Description | Specifications | Product Range

Certificates

[14511] EU Declaration of Conformity (DE, EN, FR)
No. EU240402B | 2024-04-02
Digital Sensors, non Ex
[14155] Declaration of Compliance 2.1 (DE, EN)
according to EN 10204 | gemäß EN 10204

Control Drawings

[14185] Control Drawing
Inductive Sensor-Cable Connection System Memosens
Zeichnungsnummer 214.410-240
