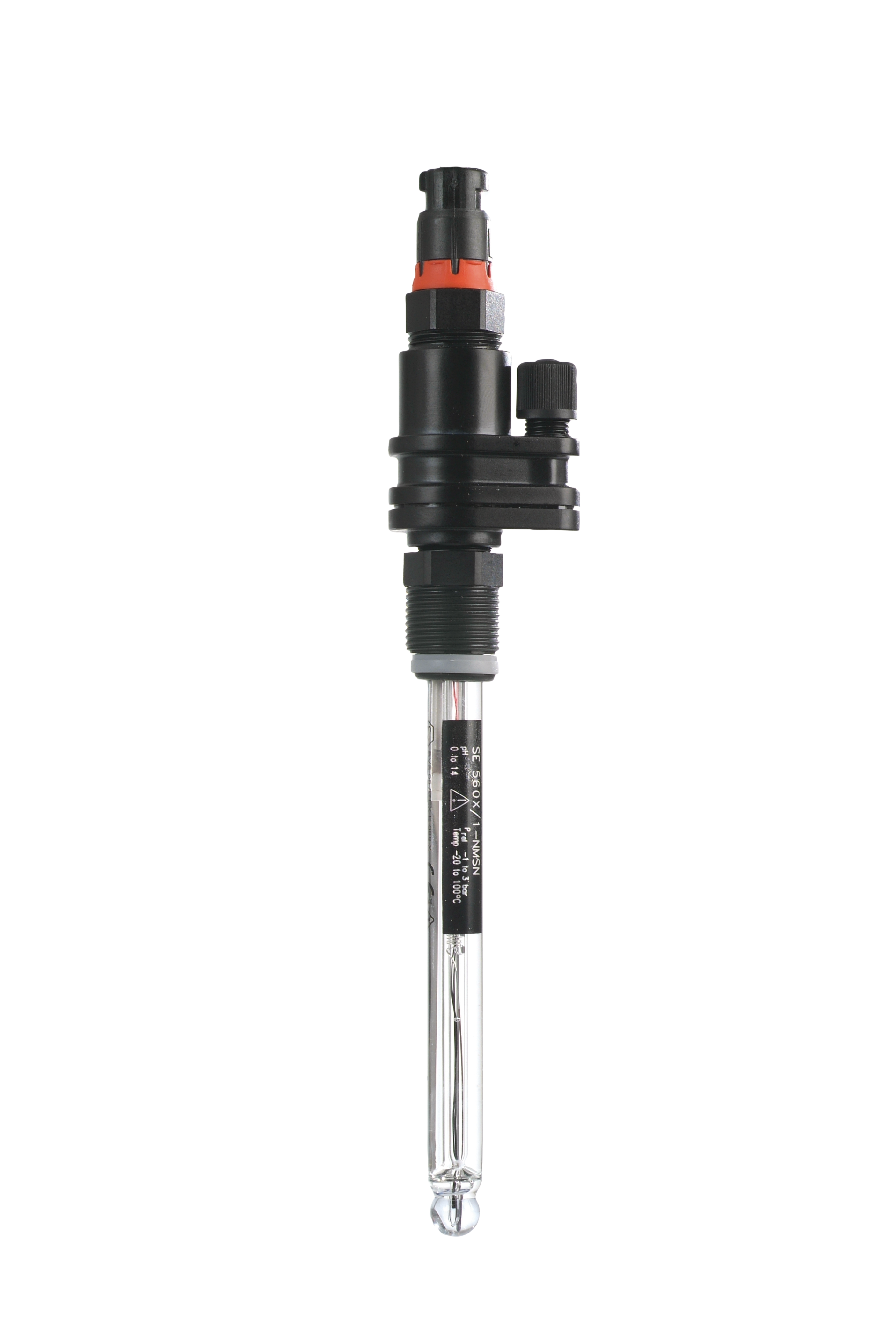

SE560 pH Sensor | Memosens | 120 mm | Ex | For low-conductivity media and low temperatures

Skip image gallery
SE560 pH Sensor | Memosens | 120 mm | Ex | For low-conductivity media and low temperatures
Connector
Product number: SE560X/1-NMSN-B1
Description Technical details Downloads Use cases

Description

SE560 pH Sensor | Memosens | 120 mm | Ex | For low-conductivity media and low temperatures

For low-conductivity media or low temperatures, refillable liquid electrolyte.

  • Precise measurement under difficult conditions (low conductivity, contaminations)
  • Measurement at low temperatures
  • Integrated temperature detector
  • Self-cleaning platinum junction
  • Alpha glass, medium impedance, universal glass, fluoride resistant
  • Perfect galvanic isolation thanks to Memosens technology
  • No influence of humidity in the connector
  • Precalibration in the lab
  • Digital data transfer
  • Integrated sensor diagnostics

Precise measurements due to self-cleaning platinum junction with high outflow of electrolyte even for media of very low conductivity. Measurements at low temperatures possible.

Applications
Low-temperature applications, cooling brine, electroplating, low-conductivity media

We look forward to hearing from you!
Contact Us

Technical details

Measurement Parameter:
pH
Connector:
Memosens
Measuring Range:
0 … 14 pH
Explosion protection:
Yes
Length:
120 mm
Process Connection:
PG 13.5
Temperature:
-20 … 100 °C
Pressure, relative:
-1 … 3 bar
Temperature Detector:
Pt1000
Junction:
Platinum
Reference System:
Ag/AgCl, liquid electrolyte, refillable
Sensor Material:
pH glass electrode with low impedance, fast response behavior

Norms

Downloads

Manuals

[14165] User Manual | Betriebsanleitung
ZU1054 Sensor Protection | Sensorschutz
Version 01
[12317] User Manual
SE560 (VP + Memosens)
Version 04
[98688] User Manual (DE, EN, KO)
Memosens Cable CA/MS
Version 09

Brochures

[13209] Brochure
Memosens - The complete solution for smart sensor applications.
[13395] Brochure
Sensors - For measuring pH/ORP, conductivity or oxygen. Digital or analog.

Data Sheets

[13199] Data sheet
SE560 Memosens pH Sensor
Product Description | Specifications | Product Range

Certificates

[18334] Manufacurer's Declaration | Herstellererklärung
(EC) No. 1907/2006 (REACH)
2025-10-01
[18254] Manufacurer's Declaration
Confirmation of the Compatibility of Digital Sensors from Our Company
Identifier: -B1
[12781] EU Declaration of Conformity (DE, EN, FR)
No. EU210706D | 2021-07-06
Memosens Measuring Cable Type CA/MS-...X.., CA/MS-...X..-L
[11064] EU Declaration of Conformity
No. EU210427A | 2021-04-27
Memosens Sensors | Types SE 5..X..-.MS., SE604X-MS**, SE605….., SE6**X**MS, SE7**…
[18270] Certitficate of Conformity (China - Ex NEPSI)
Cert No. GYJ24.1052X
SE5aa X/b-*MS*-B1
2024-04-03
[18286] Certificate of Conformity (FM)
No. FM23CA0070X | 2024-04-16 | Canada
Memosens Sensors | Types SE 5**X/*-*MS*-B1 (pH/ORP)
[14155] Declaration of Compliance 2.1 (DE, EN)
according to EN 10204 | gemäß EN 10204
O-Ringe aus EPDM oder Silikon | O-rings made of EPDM or Silicone
[16639] Type Approval Certificate for Ex-Equipment (JA)
No. DEK19.0046X, Issue No. 0 (Japan)
SE5**X/*-*MSN | SE7**X/*-*MSN
[12826] EU-Type Examination Certificate (DEKRA)
Nr. BVS 16 ATEX E 037 X | 2024-02-20
Memosens-Ex-Sensors
[18294] IECEx Certificate of Conformity
No. IECEX DEK 22.0019X
Issue No. 1 | 2025-01-09
Memosens, types SE5**X/*−*MS*−B1, SE605*-X*MS****… and SE625-X*MS*******…

Safety guides

[11046] Material Safety Data Sheet
CaliMat buffer solution pH 9,00

Control Drawings

[14185] Control Drawing
Inductive Sensor-Cable Connection System Memosens
Zeichnungsnummer 214.410-240
