SE555 pH Sensor | VP | 325 mm | Ex | Sterilizable | For aggressive media
Description
Sterilizable pH sensor providing high reliability and precision.
- Gel electrolyte, pressurized
- Ceramic junction
- Silver ion trap
- Integrated temperature detector
- pH glass with high impedance for high-temperature applications, low alkali error
- CIP/SIP-capable, safe sterilization with temperature monitoring
The SE555X/*-NVPN pH sensor comes with a special pH glass with high impedance for high-temperature applications and a low alkali error. The sensor is CIP and SIP-capable. The silver ion trap prevents silver sulfide precipitation and junction fouling in media containing sulfides. This makes the sensor ideal for routine applications in food processing and biotechnology.
Applications
Fermentation, food and beverages, aggressive media, extreme pH values
We look forward to hearing from you!
Contact Us
| Measurement Parameter: | pH |
|---|---|

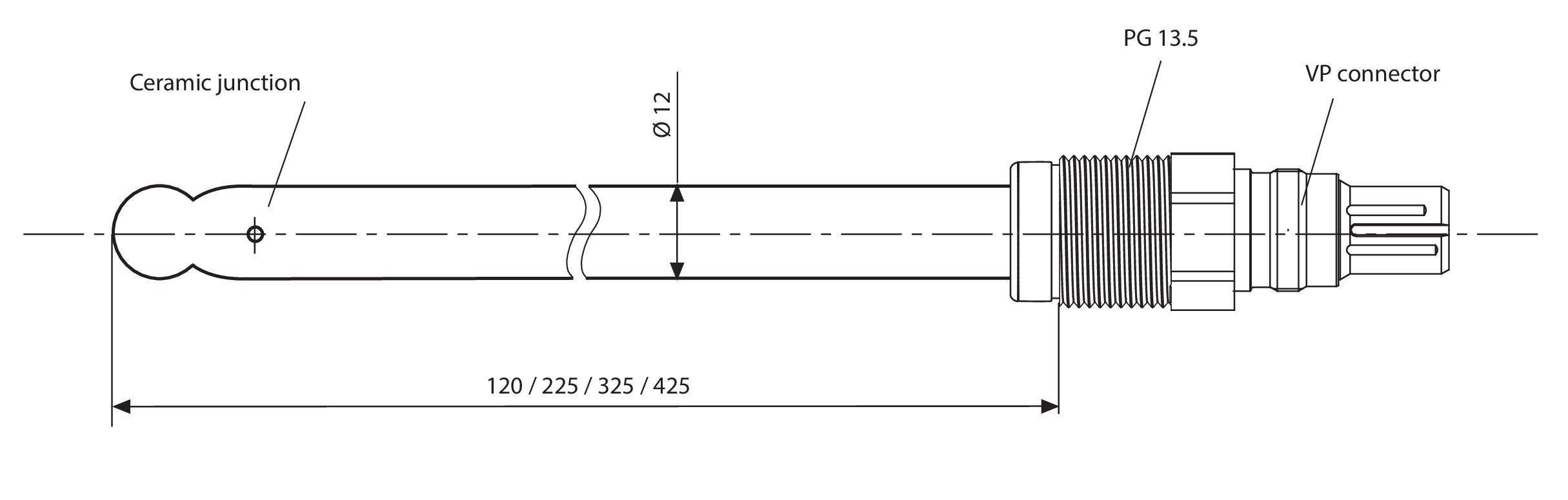

| Length: | 325 mm |
| Connector: | VP (VarioPin) |
| Measuring Range: | 0 … 14 pH |
| Explosion protection: | Yes |
| Process Connection: | PG 13.5 |
| Temperature: | 0 … 135 °C |
| Pressure, relative: | -1 … 6 bar |
| Temperature Detector: | Pt1000 |
| Junction: | Ceramic (1×) |
| Reference System: | Ag/AgCl with silver ion trap |
| pH Glass: | Omega glass, high impedance, low alkali error |
| Electrolyte: | Gel electrolyte with pressure pads |
