SE559 pH Sensor | Memosens | 225 mm | Ex | For water and analytical chemistry

Skip image gallery
Length
Product number: SE559X/2-NMSN
Description Technical details Downloads Use cases Blog posts

Description

SE559 pH Sensor | Memosens | 225 mm | Ex | For water and analytical chemistry

For uncomplicated measurement in water and analytical chemistry, digital, with Memosens technology.

  • No influence of humidity in the connector
  • Precalibration in the lab
  • Digital data transfer
  • Integrated sensor diagnostics
  • Low maintenance, no refilling of electrolyte
  • Integrated temperature detector
  • Calibrated annular junction
  • Independent of flow
  • Alpha glass, medium impedance, universal glass, fluoride resistant

The calibrated annular junction enables precise measurements in process media virtually without influence of flow.The large contact surface of the junction minimizes problems caused by contamination.

The sensor is ideal for processes for which liquid-electrolyte sensors should be used, but where maintenance is impossible for a longer period of time.

Applications
Water supply and distribution, chemical processes.

We look forward to hearing from you!
Contact Us

Technical details

Measurement Parameter: pH

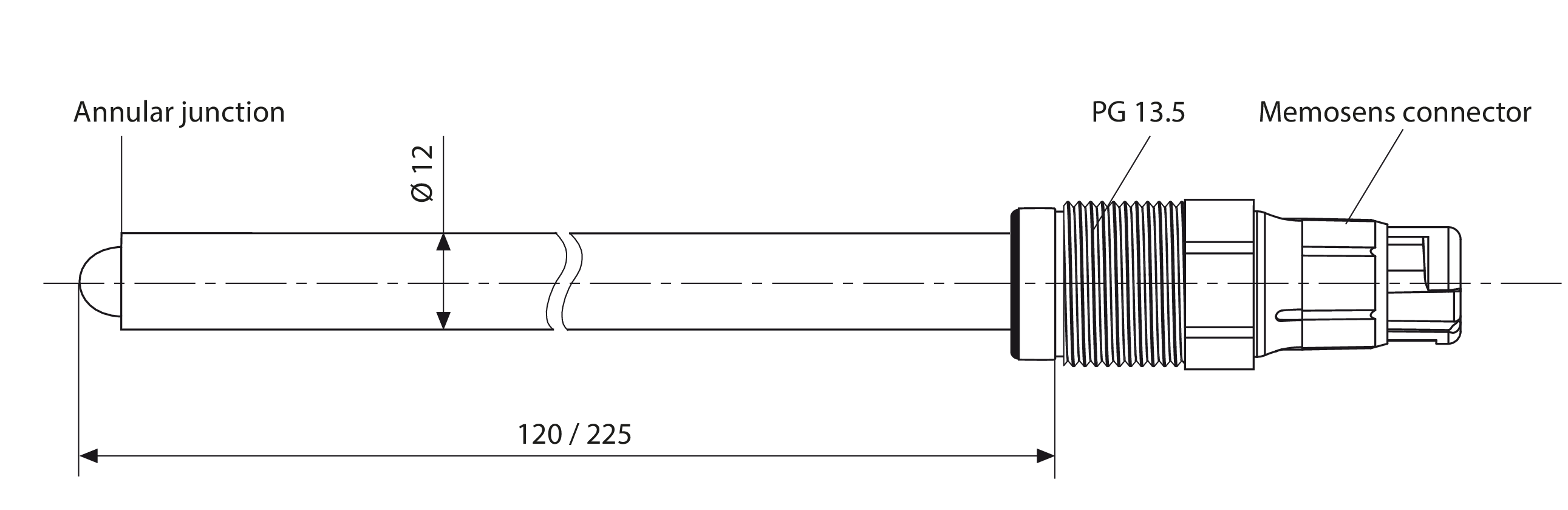

Length: 225 mm
Connector: Memosens
Measuring Range: 0 … 14 pH
Explosion protection: Yes
Process Connection: PG 13.5
Temperature: –5 … 100 °C (23 ... 212 °F)
Pressure, relative: 0 … 6 bar
Temperature Detector: NTC 30 kΩ
Junction: Calibrated annular junction
Reference System: Ag/AgCl, polymer electrolyte
Sensor Material: Alpha glass

Downloads

Manuals

[14165] User Manual (DE, EN)
ZU 1054 Sensor Protection (Sensorschutz)
[16286] User Manual (DE, EN, KO)
Memosens Cable CA/MS
Version 09
[2589) Instructions for Use
SE559X/*-NMSN
Version 03

Brochures

[13209] Brochure
Memosens - The complete solution for smart sensor applications.
[13395] Brochure
Sensors - For measuring pH/ORP, conductivity or oxygen. Digital or analog.

Data Sheets

[2581] Data sheet
SE559X/*-NMSN Memosens pH Sensor
Product Description | Specifications | Product Range

Certificates

[16262] Korean safety certificate Kosha (KO)
No. 2020-KA4BO-0355X
SE55*Xl*-NMSN, SE605H-XMS****
[12781] EU Declaration of Conformity (DE, EN, FR)
No. EU210706D | 2021-07-06
Memosens Measuring Cable Type CA/MS-...X.., CA/MS-...X..-L
[11064] EU Declaration of Conformity
No. EU210427A | 2021-04-27
Memosens Sensors | Types SE 5..X..-.MS., SE604X-MS**, SE605….., SE6**X**MS, SE7**…
[14685] Certificate of Conformity (FM)
No. FM17US0208X | 2019-05-27 | USA
Memosens Sensors | Types SE 5**, SE 6** and SE 7**
[14155] Declaration of Compliance 2.1 (DE, EN)
according to EN 10204 | gemäß EN 10204
[14690] Certificate of Conformity (FM)
No. FM17CA0105X | 2019-05-27 | Canada
Memosens Sensors | Types SE 5**, SE 6** and SE 7**

Safety guides

[11046] Material Safety Data Sheet
CaliMat buffer solution pH 9,00
[11044] Material Safety Data Sheet
CaliMat buffer solution pH 12,00
[11049] Material Safety Data Sheet
CaliMat buffer solution pH 2,00
[11045] Material Safety Data Sheet
CaliMat buffer solution pH 7,00
[11048] Material Safety Data Sheet
CaliMat buffer solution pH 4,00

Control Drawings

[14185] Control Drawing
Inductive Sensor-Cable Connection System Memosens
Zeichnungsnummer 214.410-240
