SE564 ORP Sensor | Memosens | 120 mm | Ex | For highly contaminated media with pressure fluctuations

Length
Connector
Product number: SE564X/1-NMSN
Compare
Compare
Description Technical details Downloads Use cases Blog posts

Description

SE564 ORP Sensor | Memosens | 120 mm | Ex | For highly contaminated media with pressure fluctuations

Heavy duty ORP sensor providing high reliability and precision.

  • perfect galvanic isolation thanks to Memosens technology
  • no influence of humidity in the connector
  • polymer electrolyte
  • 2-hole junction – no blocking
  • for industrial sewages
  • Suitable for solvent-containing processes
  • digital data transfer
  • integrated sensor diagnostics
  • integrated temperature detector

Heavy duty ORP sensor designed for highly contaminated media with pressure fluctuations. The state-of-the-art polymer electrolyte of the reference system provides good long-term stability.

The 2-hole junction prevents blocking also in waste water containing solid impurities.

Applications
Industrial applications, dyes, precipitation reactions, polluted media

We look forward to hearing from you!
Contact Us

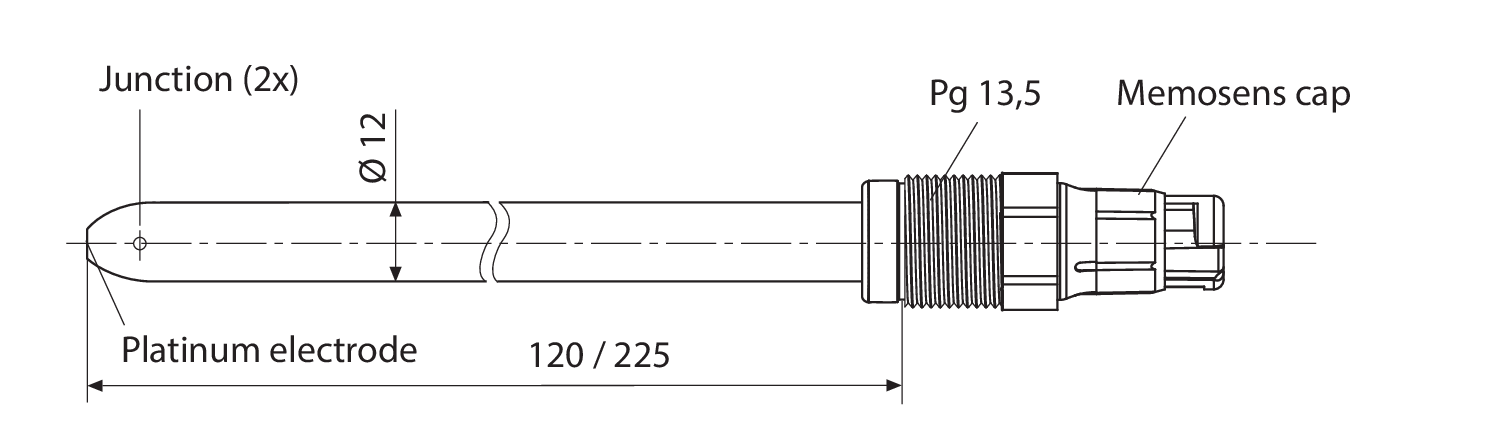

Technical details

Measurement Parameter: ORP
Connector: Memosens
Explosion protection: Ex
Length: 120 mm
Process Connection: PG 13.5
Measuring Range: ± 1500 mV
Temperature: 0 … 130 °C
Pressure, relative: 0 … 10 bar
Temperature Detector: NTC 30 kΩ
Junction: Hole (2x)
Reference System: Ag/AgCl, polymer electrolyte
Material of measuring electrode: Platinum

Downloads

Manuals

[16286] User Manual (DE, EN, KO)
Memosens Cable CA/MS
Version 09
[17411] User Manual
SE564X/*-NMSN
incl. Ex Approval Japan (JPEx DEK19.0046X)
Version 05
[13194] User Manual
SE564X/*-NMSN | SE564X/*-NS8N
Version 06

Brochures

[13395] Brochure
Sensors - For measuring pH/ORP, conductivity or oxygen. Digital or analog.

Data Sheets

[2622] Data sheet
SE564X/*-NMSN Memosens ORP Sensor
Product Description | Specifications | Product Range

Certificates

[16639] Type Approval Certificate for Ex-Equipment (JA)
No. DEK19.0046X, Issue No. 0 (Japan)
SE5**X/*-*MSN | SE7**X/*-*MSN
[14685] Certificate of Conformity (FM)
No. FM17US0208X | 2019-05-27 | USA
Memosens Sensors | Types SE 5**, SE 6** and SE 7**
[16292] Korean safety certificate Kosha (KO)
No. 2020-KA4BO-0368X
Measuring Cable CA/MS
[14690] Certificate of Conformity (FM)
No. FM17CA0105X | 2019-05-27 | Canada
Memosens Sensors | Types SE 5**, SE 6** and SE 7**
[11064] EU Declaration of Conformity
No. EU210427A | 2021-04-27
Memosens Sensors | Types SE 5..X..-.MS., SE604X-MS**, SE605….., SE6**X**MS, SE7**…
[12826] EU-Baumusterprüfbescheinigung (DEKRA)
Nr. BVS 16 ATEX E 037 X | 2021-03-26
Memosens-Ex-Sensoren | Details siehe Dokument
[16262] Korean safety certificate Kosha (KO)
No. 2020-KA4BO-0355X
SE55*Xl*-NMSN, SE605H-XMS****
[14155] Declaration of Compliance 2.1 (DE, EN)
according to EN 10204 | gemäß EN 10204

Control Drawings

[14185] Control Drawing
Inductive Sensor-Cable Connection System Memosens
Zeichnungsnummer 214.410-240
