SE557 pH Sensor | Memosens | 120 mm | Ex | Alpha glass | For process media requiring high measurement stability

Description

SE557 pH Sensor | Memosens | 120 mm | Ex | Alpha glass | For process media requiring high measurement stability

For special requirements and high-precision measurements with refillable liquid electrolyte, digital, with Memosens technology

  • Alpha glass, medium impedance, universal glass, fluoride resistant
  • High accuracy
  • Extensive measuring range for pH and temperature
  • Refillable liquid electrolyte
  • 2 ceramic junctions
  • Self cleaning due to pressurization
  • Integrated temperature detector
  • Perfect galvanic isolation thanks to Memosens technology
  • No influence of humidity in the connector
  • Precalibration in the lab
  • Digital data transfer
  • Integrated sensor diagnostics

Elimination of typical junction problems resulting in high measurement accuracy in ultrapure water as well as in heavily polluted media and at high temperatures. Integrated, refillable liquid electrolyte reservoir. 2 ceramic junctions, self cleaning due to pressurization (continuous outflow of electrolyte).

We look forward to hearing from you!
Contact Us

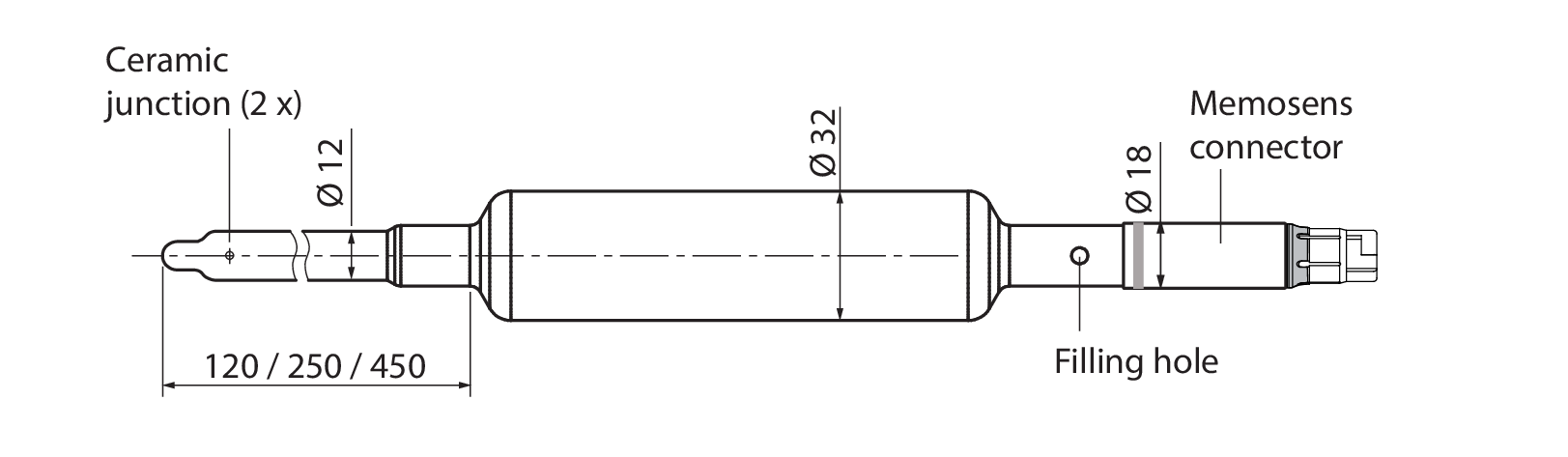

Technical details

Measurement Parameter: pH
Length: 120 mm
Connector: Memosens
Measuring Range: 0 … 14 pH
Explosion protection: Yes
Temperature: -20 … 100 °C
Pressure, relative: -1 … 6 bar
Temperature Detector: NTC 30 kΩ
Junction: Ceramic (2x)
Reference System: Ag/AgCl, refillable liquid electrolyte
Sensor Material: Alpha glass

Downloads

Manuals

Instructions for Use
SE557X/*-NMSN
incl. Ex Approval Japan (JPEx DEK19.0046X)
[16286] User Manual (DE, EN, KO)
Memosens Cable CA/MS
Version 09
[12418] Instructions for Use | Betriebsanleitung (DE+EN)
pH Sensor SE557 (Memosens + VP)
Version 07

Brochures

[13209] Brochure
Memosens - The complete solution for smart sensor applications.
[13395] Brochure
Sensors - For measuring pH/ORP, conductivity or oxygen. Digital or analog.

Data Sheets

[2531] Data Sheet
SE557X/*-NMSN / NMSH
Product Description | Specifications | Product Range

Certificates

[12831] IECEx Certificate of Conformity
Memosens Ex Sensors | Details see Document
Document No. IECEx BVS 16.0030X, issue No. 2 | 2024-02-23
Marking: Ex ia IIC T3/T4/T6 Ga
[16262] Korean safety certificate Kosha (KO)
No. 2020-KA4BO-0355X
SE55*Xl*-NMSN, SE605H-XMS****
[12781] EU Declaration of Conformity (DE, EN, FR)
No. EU210706D | 2021-07-06
Memosens Measuring Cable Type CA/MS-...X.., CA/MS-...X..-L
[11064] EU Declaration of Conformity
No. EU210427A | 2021-04-27
Memosens Sensors | Types SE 5..X..-.MS., SE604X-MS**, SE605….., SE6**X**MS, SE7**…
[14685] Certificate of Conformity (FM)
No. FM17US0208X | 2019-05-27 | USA
Memosens Sensors | Types SE 5**, SE 6** and SE 7**
[16639] Type Approval Certificate for Ex-Equipment (JA)
No. DEK19.0046X, Issue No. 0 (Japan)
SE5**X/*-*MSN | SE7**X/*-*MSN
[12826] EU-Type Examination Certificate (DEKRA)
Nr. BVS 16 ATEX E 037 X | 2024-02-20
Memosens-Ex-Sensors
[16292] Korean safety certificate Kosha (KO)
No. 2020-KA4BO-0368X
Measuring Cable CA/MS
[14690] Certificate of Conformity (FM)
No. FM17CA0105X | 2019-05-27 | Canada
Memosens Sensors | Types SE 5**, SE 6** and SE 7**

Safety guides

[11046] Material Safety Data Sheet
CaliMat buffer solution pH 9,00
[11044] Material Safety Data Sheet
CaliMat buffer solution pH 12,00
[11049] Material Safety Data Sheet
CaliMat buffer solution pH 2,00
[11045] Material Safety Data Sheet
CaliMat buffer solution pH 7,00
[11048] Material Safety Data Sheet
CaliMat buffer solution pH 4,00

Control Drawings

[14185] Control Drawing
Inductive Sensor-Cable Connection System Memosens
Zeichnungsnummer 214.410-240
