Steam-sterilizable sensor providing high reliability and precision, digital, with Memosens technology

Simultaneous measurement of pH and ORP
Gel electrolyte, pressurized and long-term stable
Ceramic junction
Silver ion trap
Integrated temperature detector
Omega glass with high impedance for high-temperature applications, very low alkali error
CIP/SIP capable, safe sterilization with temperature monitoring
Perfect galvanic isolation thanks to Memosens technology
No influence of humidity in the connector
Precalibration in the lab
Digital data transfer
Integrated sensor diagnostics

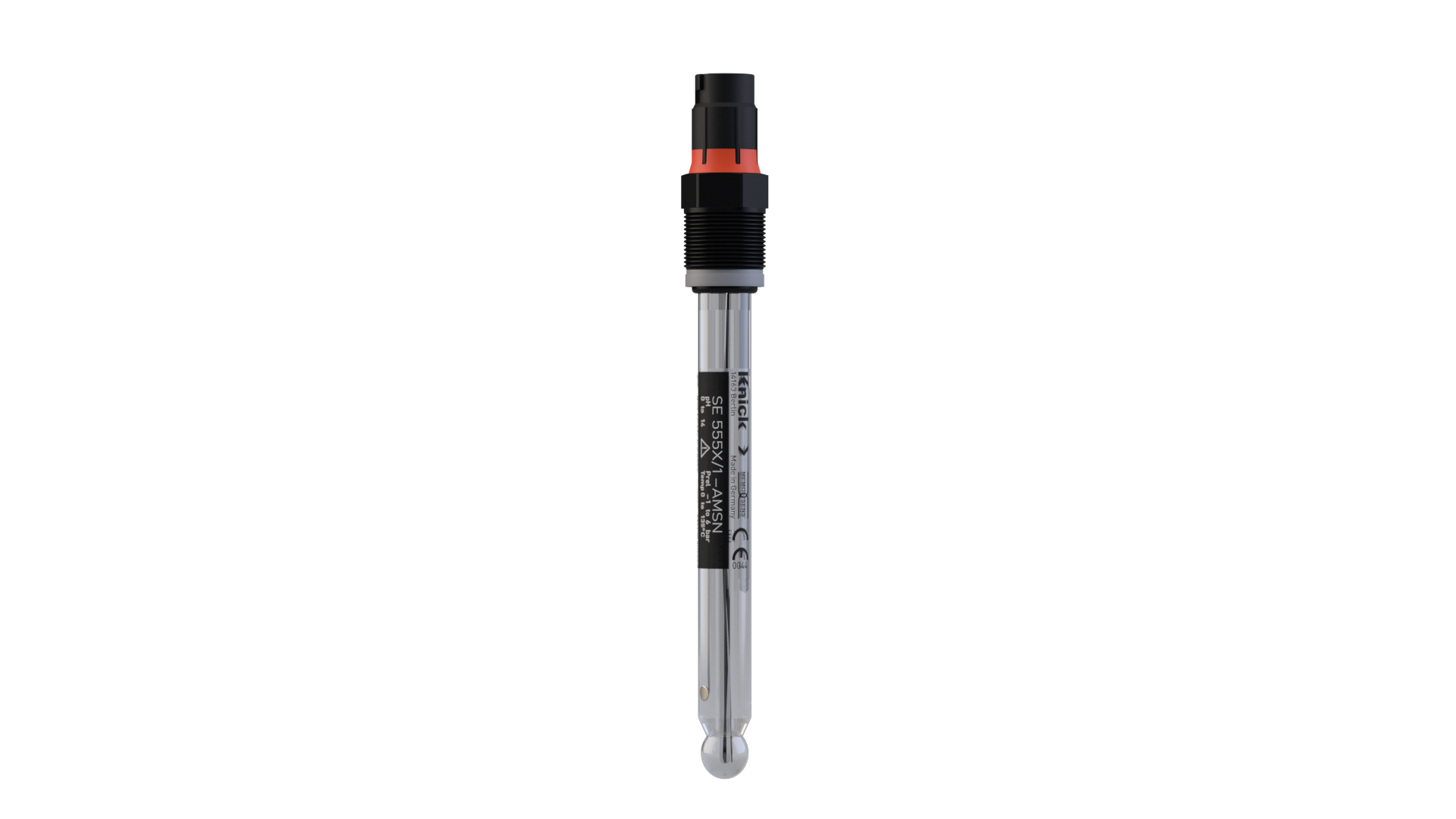

The digital pH/ORP sensor SE555X/1-AMSN has a special pH glass with high impedance for high-temperature applications and low alkali error as well as a platinum disk as ORP measuring element.

The sensor is CIP and SIP capable. The silver ion trap prevents contamination and blocking of the junction by silver sulfide in sulfide-containing media. The reference electrolyte is biocompatible. This makes the sensor predestined for applications in food and biotechnology, but it is also suitable for continuous and simultaneous measurement of pH and ORP in process chemistry or wastewater.

In addition, the Memosens technology offers all known advantages in terms of handling and sensor diagnostics.

Applications
Fermentation, food and beverages, aggressive media, extreme pH values, waste water

Combined pH- and ORP-Sensor SE555X/*-AMSN

Jun 2022

Process Analytics

pH, Sensor, SE555, ORP

Combined pH and ORP measurement in one sensor SE555 saves place and equipment costs for demanding requirements in the chemical industry, the food sector and for hygienic applications.

more...

We look forward to hearing from you!
Contact Us

Technical details

Measurement Parameter:	pH, ORP
Length:	120 mm
Connector:	Memosens
Measuring Range:	0 … 14 pH, ± 1500 mV
Explosion protection:	Yes
Process Connection:	PG 13.5
Temperature:	0 … 135 °C
Pressure, relative:	-1 … 6 bar
Temperature Detector:	NTC 30 kΩ
Junction:	Ceramic (1x)
Reference System:	Ag/AgCl with silver ion trap
Sensor Material:	Omega glass, high impedance, low alkali error, Platinum
Electrolyte:	Gel electrolyte with pressure pads
