Fittings
Knick’s fittings offer safety and convenience when measuring pH, ORP, oxygen, and conductivity using a wide range of sensors. The product range extends from immersion fittings to inline fittings, flow-through fittings, and retractable fittings up to fully automatic calibration and cleaning systems.
Knick process fittings are especially suitable for use in industrial conditions, such as at high pressures, high temperatures, and in highly corrosive or aggressive media. Knick retractable fittings are currently the first choice for applications in the fields of chemistry, pharmaceuticals, dyes, oil, and sugar.
Whether an immersion fitting, inline fitting, flow-through fitting, or retractable fitting, regardless of the sensor – Knick fittings are produced in-house from a variety of materials (PVDF, PEEK, or stainless steel), thereby allowing their flexible use in a broad range of processes.

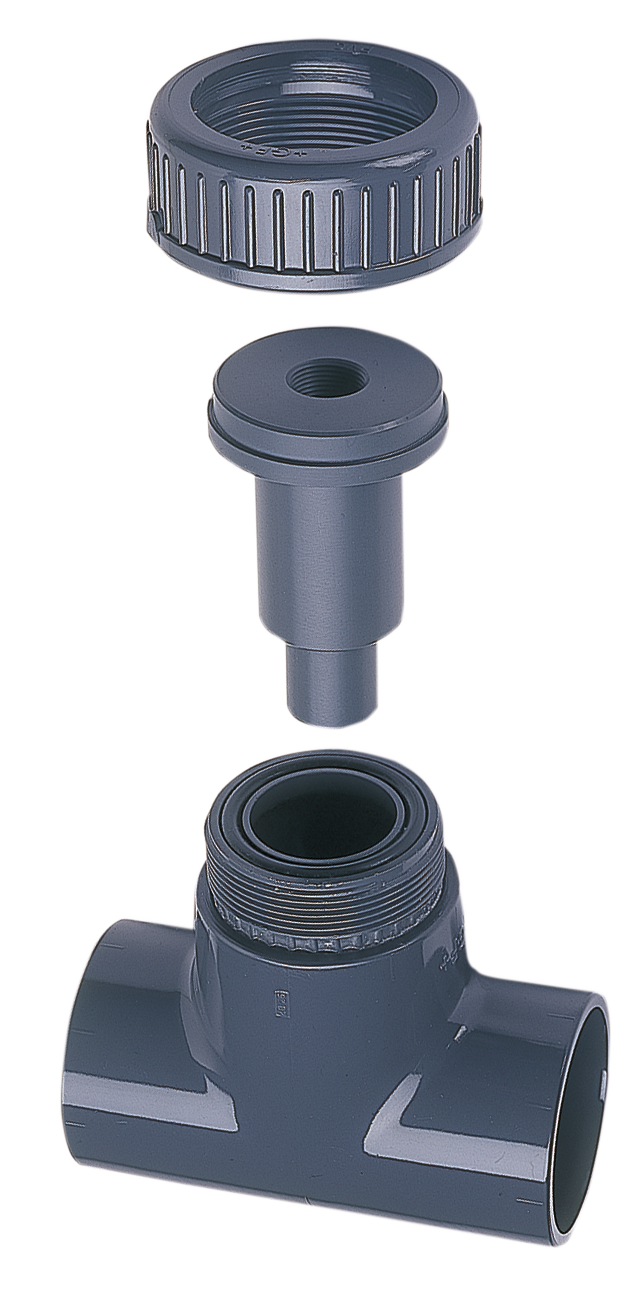

ARF101 Flow-Through Fitting | PVC | One sensor with PG 13.5 connection, 12 mm diameter and 120 mm length
ARF101
Explosion protection: No
Operation: manually
WA131M SensoGate Retractable Fitting | Modular | Manual with rotary drive
WA131M
Approvals: ATEX
Explosion protection: Yes
Operation: manually

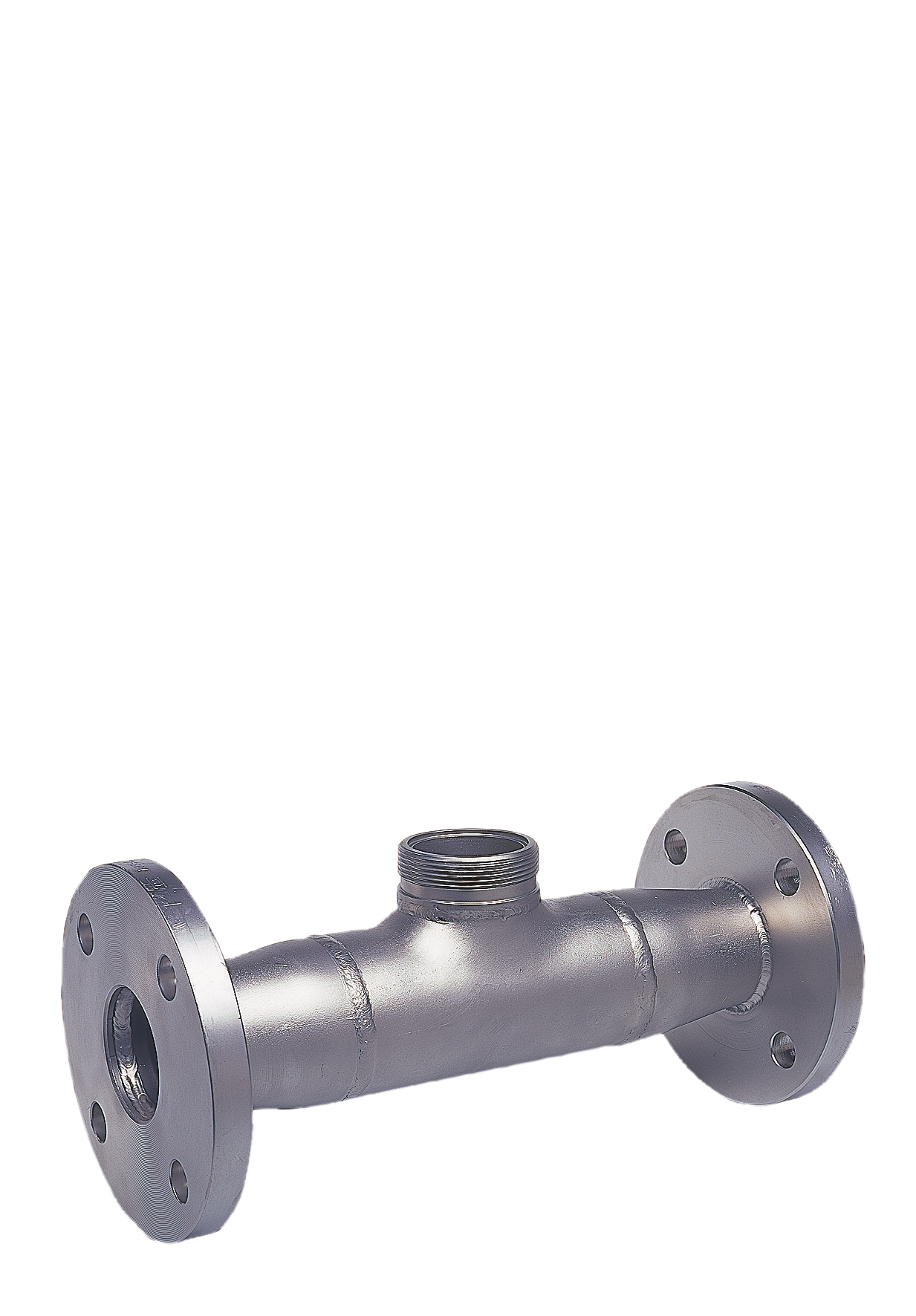

ARF240 Flow-Through Fitting | Stainless steel | For direct installation in pipelines with DN 50 cross-section
ARF240
Explosion protection: No
Operation: manually

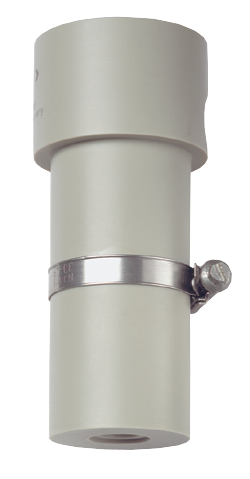

ARF201 Flow-Through Fitting | PP-H | One sensor
ARF201
Explosion protection: No
Operation: manually
WA131MH SensoGate Retractable Fitting | Modular | Manual with rotary drive | For hygienic applications
WA131MH
Approvals: ATEX
Explosion protection: Yes
Operation: manually

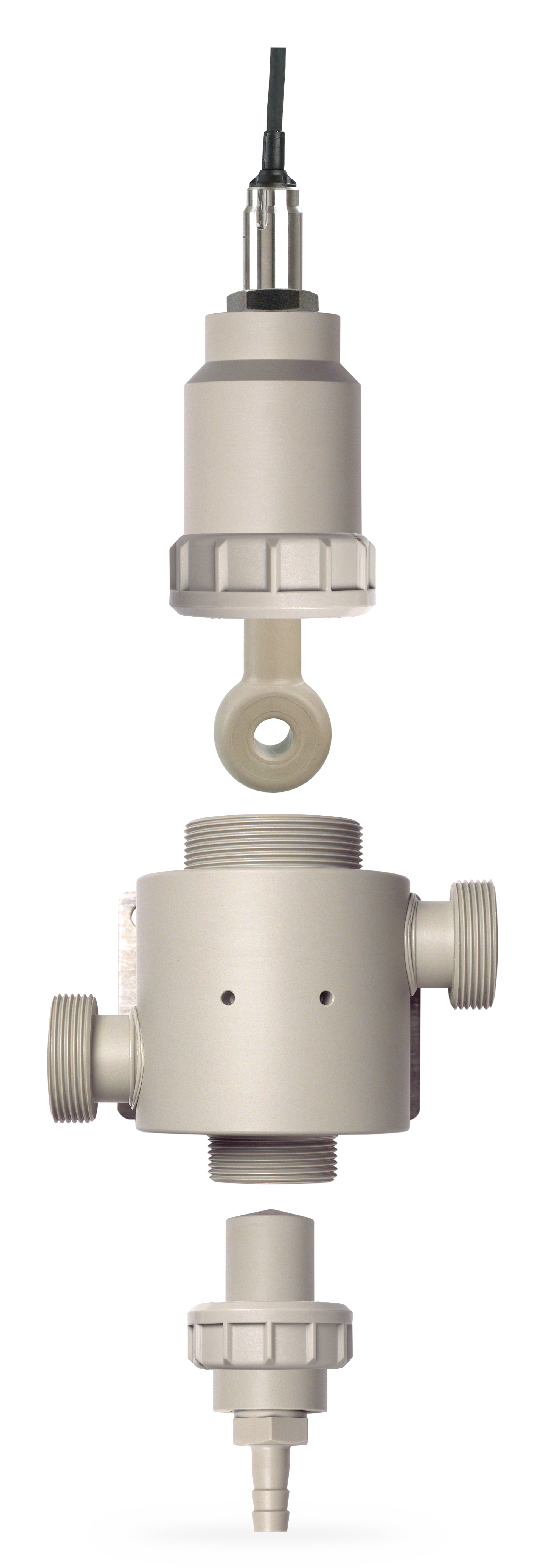

ARF215 Flow-Through Fitting | Modular | PP-H or PVDF | Up to three sensors
ARF215
Explosion protection: No
Operation: manually
ARD170 Submersible Fitting with sinker | PP-H or PP-electrically conductive | For field measurement with Memosens sensors
ARD170
Explosion protection: No
Operation: manually

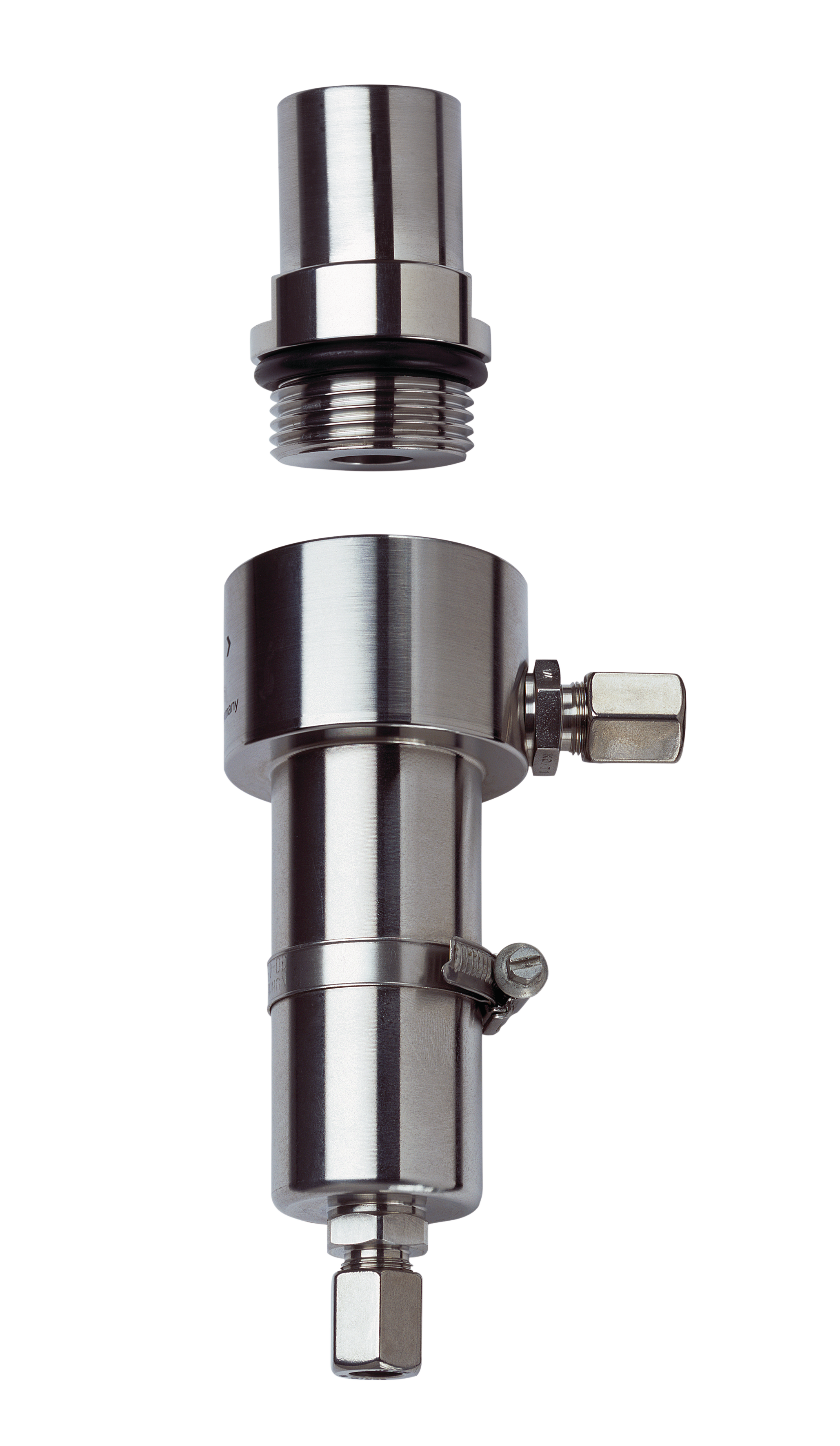

ARF200 Flow-Through Fitting | Stainless steel or Hastelloy C22 | One sensor | Process connection via cutting ring coupling
ARF200
Explosion protection: No
Operation: manually
WA133M SensoGate Retractable Fitting | Modular | Manual with rotary drive | Process-wetted parts made of PTFE
WA133M
Approvals: ATEX
Explosion protection: Yes
Operation: manually

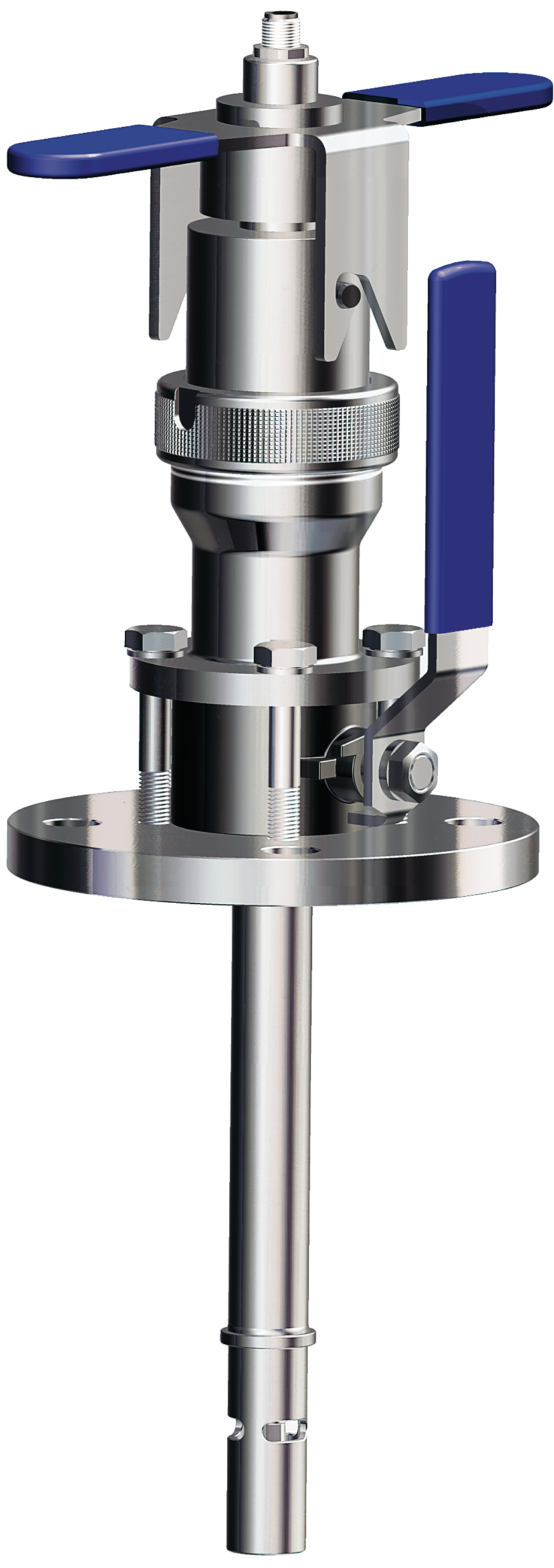

WA125 Ball-Valve Retractable Fitting | Stainless Steel | With integrated 2-electrode conductivity sensor (SE 605) | Large immersion depth
WA125
Explosion protection: No
Operation: manually

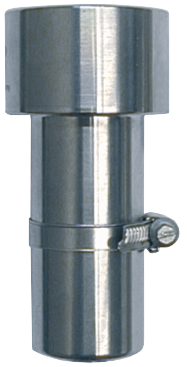

ARF202 Flow-Through Fitting | Stainless steel or Hastelloy C22 | One sensor | Process connection via G 1/4“ or NPT 1/4“
ARF202
Explosion protection: No
Operation: manually
ARI106 (H) Inline Fitting | Modular | Stainless steel or highly resistant plastic | For 12-mm sensors | For chemical and hygienic applications
ARI106
Explosion protection: No
Operation: manually
ARD250 Immersion Fitting | PP-H | For sensors with PG 13.5 thread
ARD250
Explosion protection: No
Operation: manually
ARD50 EL Immersion Fitting | Modular | PP-EL | Ex | One Sensor
ARD50EL
Explosion protection: No
Operation: manually
ARD50 Immersion Fitting | Modular | PP-H or PVDF | One Sensor
ARD50
Operation: manually
WA153 Ceramat Retractable Fitting | Ceramic lock-gate sealing | Pneumatic | Stainless steel, Titanium or Hastelloy
WA153
Approvals: ATEX
Explosion protection: Yes
Operation: for cCare
WA130H SensoGate Retractable Fitting | Modular | Pneumatic | For Uniclean and Unical | For hygienic applications
WA130H
Approvals: ATEX
Explosion protection: Yes
Operation: for cCare
WA132 SensoGate Retractable Fitting | Modular | Pneumatic | Process-wetted parts made of PTFE | For Uniclean and Unical
WA132
Approvals: ATEX
Explosion protection: Yes
Operation: for cCare
ARD230 Immersion Fitting | Stainless Steel | One sensor with PG 13.5 connection | With small Diameter
ARD230
Explosion protection: No
Operation: manually

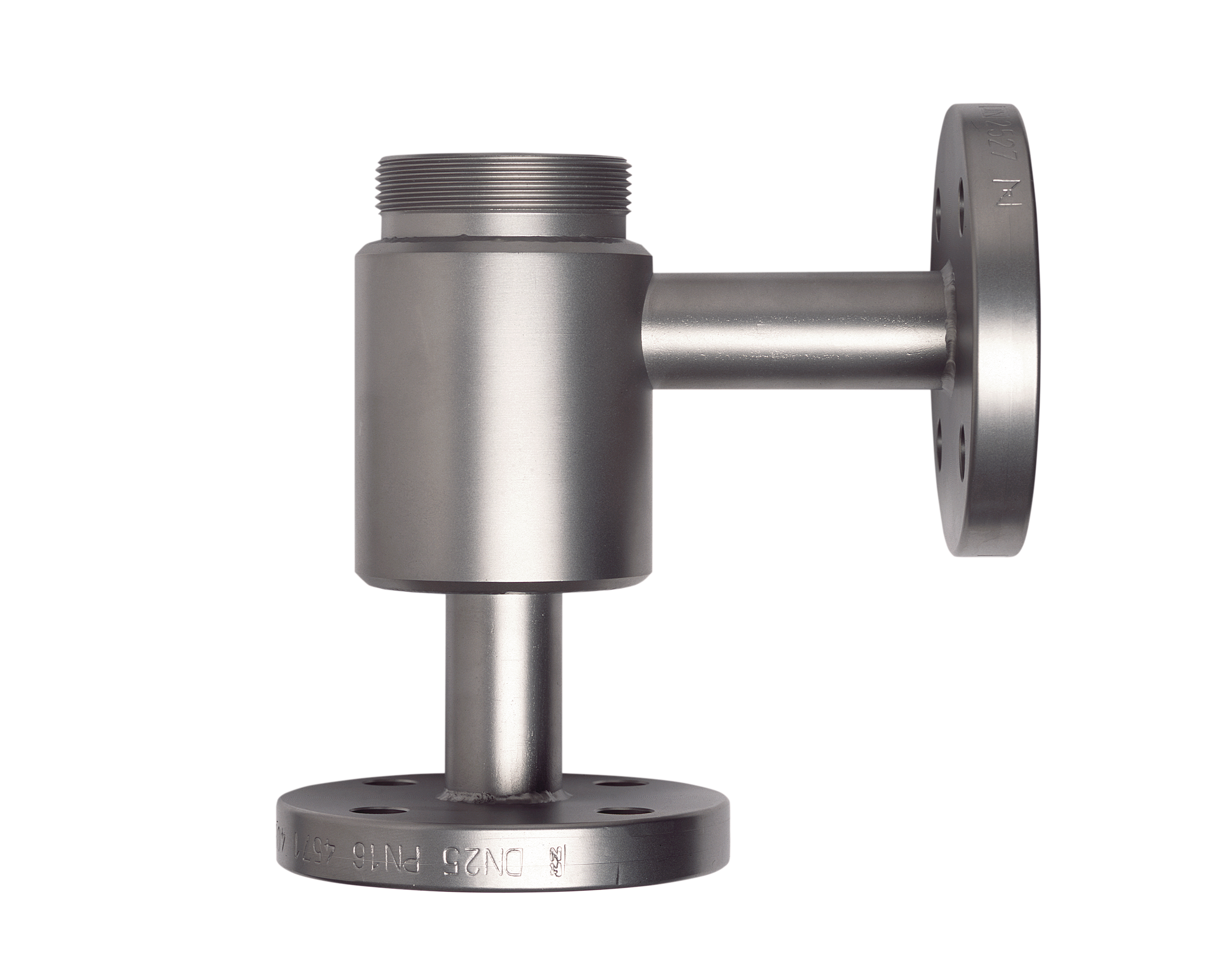

ARF210 Flow-Through Fitting | Modular | Stainless steel | Up to three sensors
ARF210
Explosion protection: No
Operation: manually
WA150 Ceramat Retractable Fitting | Ceramic lock-gate sealing | Pneumatic | Carbon-fiber-reinforced PVDF or PEEK
WA150
Approvals: ATEX
Explosion protection: Yes
Operation: for cCare
WA131H SensoGate Retractable Fitting | Modular | Pneumatic | For simple, commercial controllers | For hygienic applications
WA131H
Approvals: ATEX
Explosion protection: Yes
Operation: automated
WA133 SensoGate Retractable Fitting | Modular | Pneumatic | Process-wetted parts made of PTFE | For simple, commercial controllers
WA133
Approvals: ATEX
Explosion protection: Yes
Operation: automated
WA160 Ceramat Retractable Immersion Fitting | Ceramic lock-gate sealing | Pneumatic | Immersion depth up to 2000 mm
WA160
Approvals: ATEX
Explosion protection: Yes
Operation: for cCare
ARD75 Immersion Fitting | Modular | PP-H or PVDF | Up to three sensors
ARD75
Explosion protection: No
Operation: manually
ARD75 Immersion Fitting | Modular | PP-EL | Ex | Up to three sensors
ARD75EL
Explosion protection: No
Operation: manually
WA131 SensoGate Retractable Fitting | Modular | Pneumatic | For simple, commercial controllers
WA131
Approvals: ATEX
Explosion protection: Yes
Operation: automated
WA130 SensoGate Retractable Fitting | Modular | Pneumatic | For Uniclean and Unical
WA130
Approvals: ATEX
Explosion protection: Yes
Operation: for cCare
ARD220 Immersion Fitting | Stainless Steel | Up to three sensors with PG 13.5 connection
ARD220
Explosion protection: No
Operation: manually

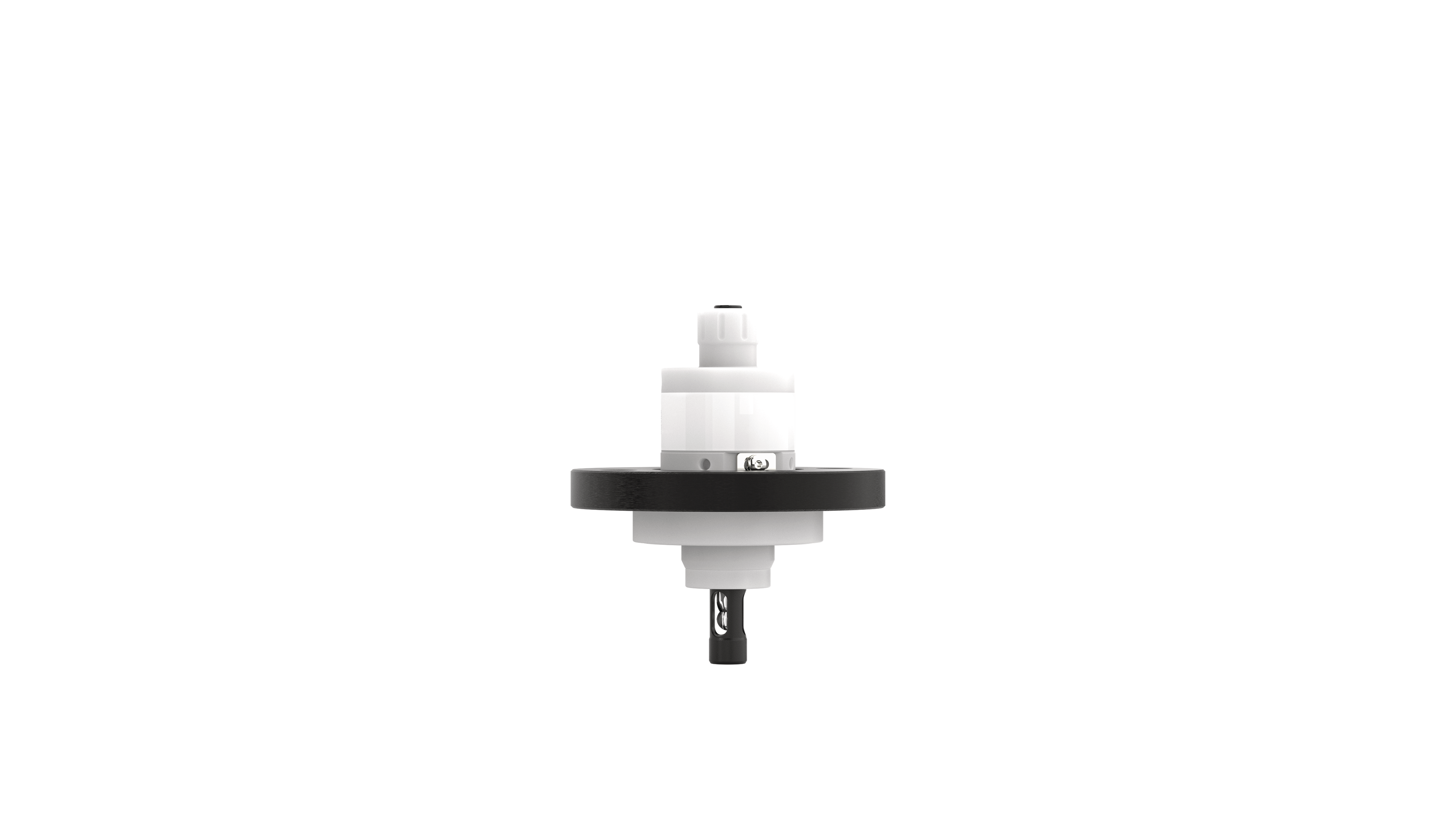

WA111 Retractable Fitting | Modular | Pneumatic or hydropneumatic | Highly resistant plastic
WA111
Explosion protection: No
Operation: automated

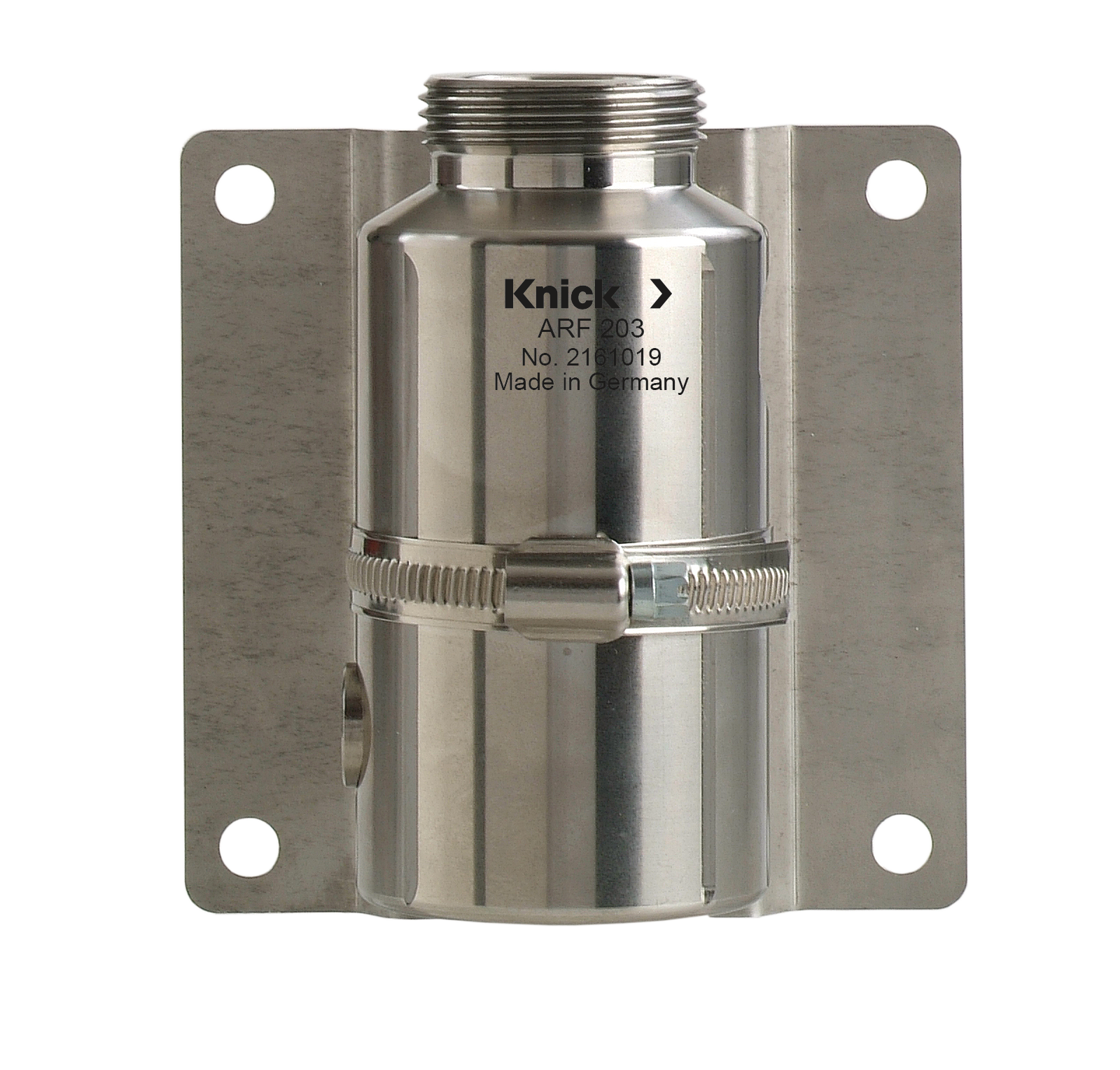

ARF203 Flow-Through Fitting | Stainless steel or Hastelloy C22 | For sensors and fittings with 25-mm Ingold socket
ARF203
Explosion protection: No
Operation: manually
WA154 Ceramat Retractable Fitting | Ceramic lock-gate sealing | Pneumatic | Stainless steel, Titanium or Hastelloy | Immersion depth up to 300 mm
WA154
Approvals: ATEX
Explosion protection: Yes
Operation: for cCare
