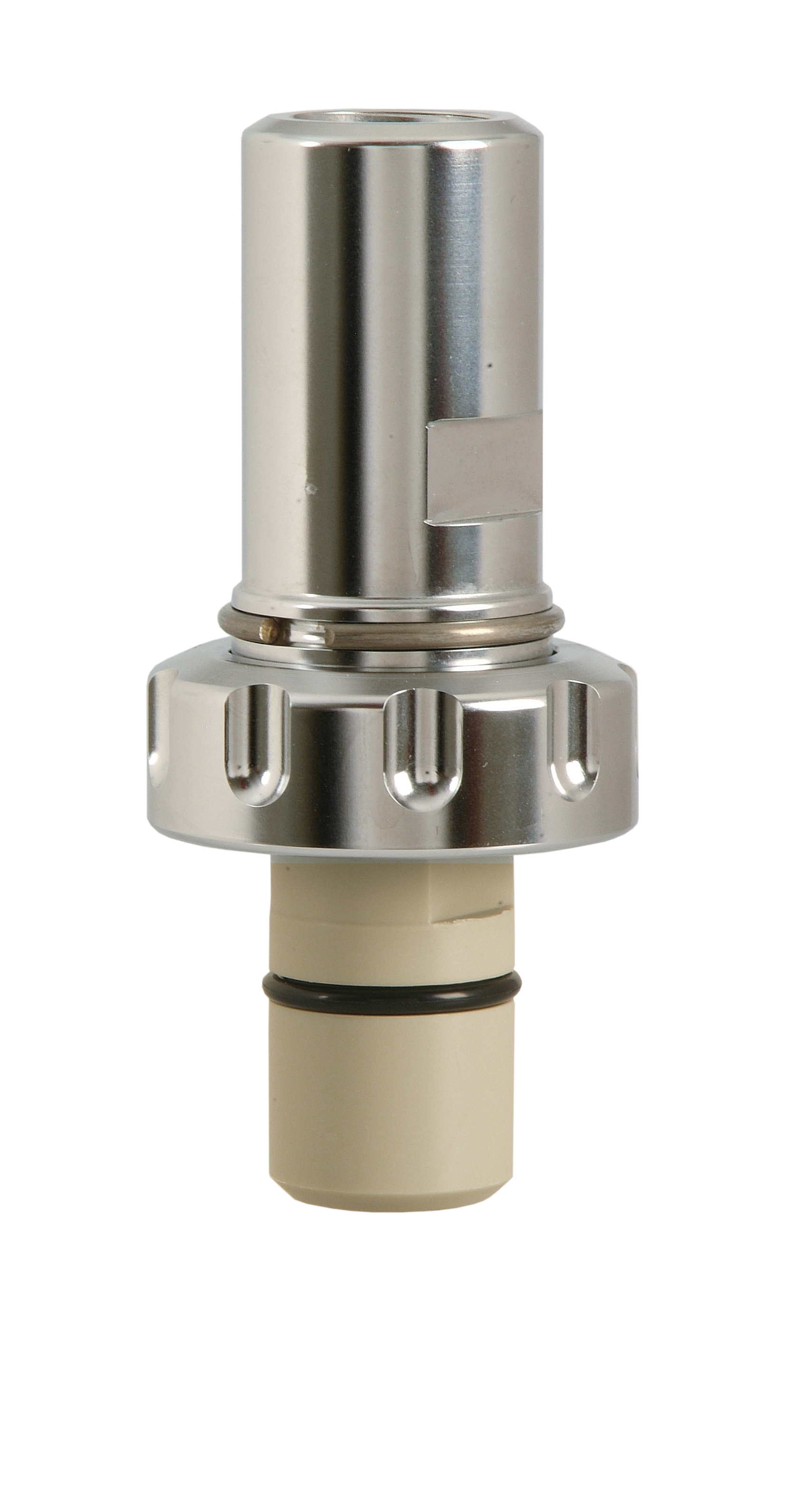

Portasondas en línea ARI106 (H) | Modular | Acero inoxidable o plástico altamente resistente | Para sensores de 12 mm | Para aplicaciones químicas e higiénicas
Número de producto:
ARI106
Description
Portasondas en línea ARI106 (H) | Modular | Acero inoxidable o plástico altamente resistente | Para sensores de 12 mm | Para aplicaciones químicas e higiénicas
Portasondas en línea económico y robusto para sensores de 12 mm, para procesos químicos y aplicaciones higiénicas
- Adaptable a las condiciones individuales del proceso
- Diseño modular
- Material: acero o plástico altamente resistente
- Apto para medios de procesos químicos
- Apto para aplicaciones higiénicas
- Apto para CIP y SIP, autoclavable
- Para sensores de pH con electrolito polimérico
- Para sensores de pH con electrolito líquido presurizable
- Para sensores de oxígeno o conductividad con conexión PG 13,5, 120 mm de longitud y 12 mm de diámetro
- Protección de sensor integrada
- Apto para lugares peligrosos
El concepto modular permite la adaptación a prácticamente cualquier proceso. En cualquier momento es posible la sustitución de componentes o la ampliación.
Apto para procesos químicos agresivos, así como para procesos con requisitos higiénicos. Pueden utilizarse sensores de pH con electrolito polimérico o con electrolito presurizable recargable. También admite sensores de conductividad y oxígeno con un diámetro de 12 mm. Para funcionamiento en lugares peligrosos.
Aplicaciones
Medición de pH, conductividad u oxígeno en procesos químicos, en la industria farmacéutica o alimentaria y en biotecnología
¡Estaremos encantados de atenderle!
Contacto
| Materiales en contacto con el medio: | Hastelloy, PEEK, PP-H, PVDF, Stainless Steel 1.4435, Titanium |
|---|---|
| Sensores y adaptadores: | Sensor de conductividad, conductivo, Sensor de oxígeno, Sensor de pH |
| Tipo de producto: | Inline Fitting |
| Operation: | manually |
| Protección contra explosiones: | No |
