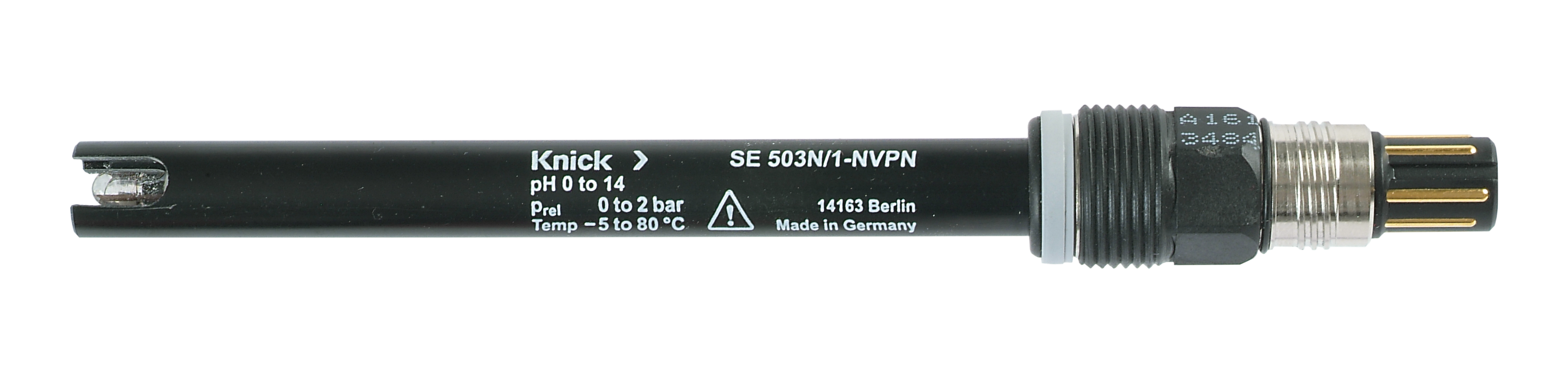

SE503 Sensore pH | VP | 120 mm | Corpo in polisolfone | Per il trattamento delle acque e delle acque reflue
Codice prodotto:
SE503N/1-NVPN
Description
SE503 Sensore pH | VP | 120 mm | Corpo in polisolfone | Per il trattamento delle acque e delle acque reflue
Il sensore pH standard per il settore delle acque/acque reflue, robusto e a ridotta manutenzione
- A ridotta manutenzione, non richiede rabbocco o pressurizzazione dell’elettrolita
- Sonda di temperatura integrata
- 2 diaframmi in ceramica
- Robusto grazie a un corpo in polisolfone
- Gabbia di protezione integrata
- Connettore VP
Dotato di un corpo in polisolfone, il sensore pH SE503 è robusto e resistente alla contaminazione. Il sensore di processo è adatto anche per applicazioni a basse temperature e offre una misurazione affidabile del pH a costi e manutenzione ridotti.
Non vediamo l'ora di ascoltarvi!
Contatto
| Collegamento di processo: | PG 13,5 |
|---|---|
| Diaframma: | Ceramica (2x) |
| Materiale del corpo: | PSU (Polysulfon) |
| Parametro di misurazione: | pH |
| Pressione, relativa: | 0 … 2 bar |
| Sistema di riferimento: | Ag/AgCl, polimero solido |
| Sonda di temperatura: | Pt1000 |
| Temperatura: | –5 … 80 °C ( 23 ... 176 °F) |

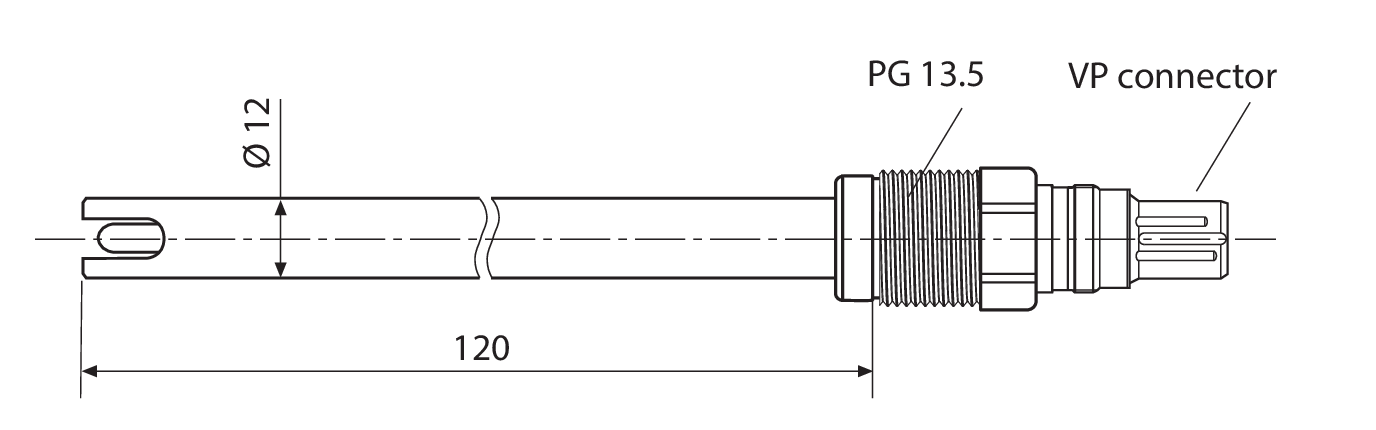

| Lunghezza: | 120 mm |
| Connettore: | VP (VarioPin) |
| Campo di misura : | 0 … 14 pH |
| Protezione contro le esplosioni: | No |
