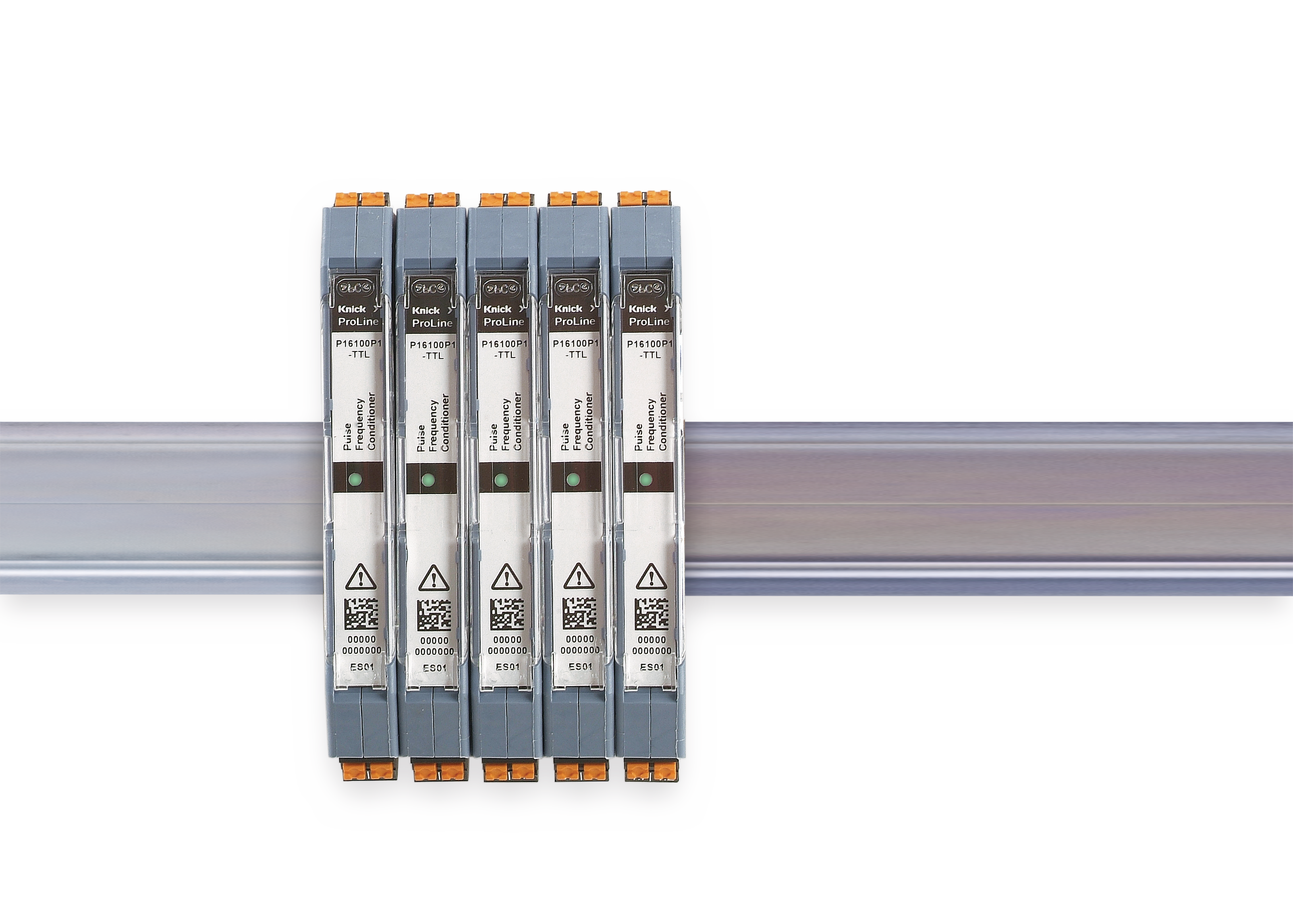

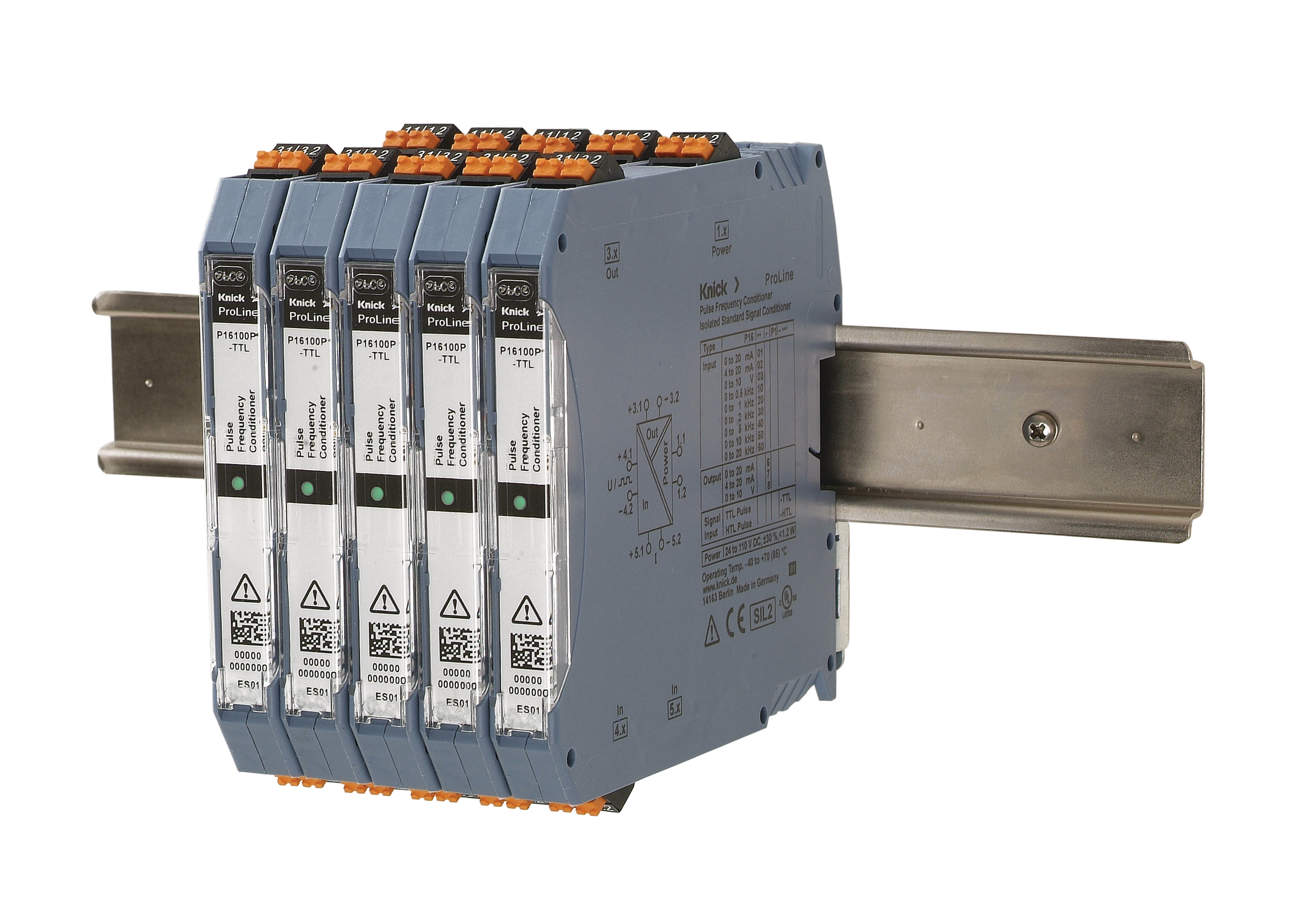

P16000 Pulse Frequency Conditioner | SIL 3 Non-interacting Extraction of RPM/Speed Sensor Signals
Description
The P16000 receives signals from speed sensors and transmits and converts them into electrically isolated analog standard signals.
- Pulse frequency measurement, e.g., of speed sensors / rotary encoders for safe detection of the train’s speed or standstill; galvanic isolation and
- conversion into standard signals; measuring ranges: 0 ... 500 Hz to 0 ... 20 kHz.
- Converting the pulse frequency into a standard signal eliminates the need for pulse counting inputs at the control unit.
- Safety-related signals from existing circuits can be duplicated without interaction and can be transmitted to another subsystem.
- The absence of interaction is designed to be functionally safe and achieves SIL 3.
- 5-year warranty
The input is designed in a way that it can “tap” signals from existing circuits without disturbing the original signal. This absence of interaction complies with the SIL 3 integrity level according to EN 61508.
Even a safety-oriented signal from a sensor can be duplicated and transmitted to a second controller without any interaction.
The product is resistant against the harsh environmental conditions typical of rolling stock applications. The device functionality is not affected by electromagnetic interferences, extreme ambient temperatures or vibration and shock. The latest fire safety regulations for rail vehicles are met.
Standards
- Use on rolling stock – EN 50155
- Power supply – EN 50155 (S2), RIA12/1984)
- Fire protection (HL3) – EN 45545-2
- Functional safety – EN 61508
- Reliability (MTBF) – EN 61709
- Protection against electric shock – EN 61140
- Vibration / Shock (Category 1, Class B) – EN 61373 (IEC 61373)
- EMC—railway applications – EN 50121-1, EN 50121-3-2
- EMC—industrial applications – EN 61326-1
- Temperature class TX (-40…+85 °C) – EN 50155 / EN 50125-1 and EN 50125-2
- Altitude class AX (2000 m or 4000 m AMSL) – EN 50155 / EN 50125-1 and EN 50125-2
- Insulation coordination for railway and industry -EN 50124-1, EN 61010-1
- Electrical safety and fire protection USA – UL 61010-1
We look forward to hearing from you!
Contact Us
| Function: |
RPM/speed recording
|
|---|---|
| Input: |
0 ... 0.5 kHz
0 ... 1 kHz
0 ... 2 kHz
0 ... 5 kHz
0 ... 10 kHz
0 ... 20 kHz
Speed sensor signal
|
| Output: |
0 ... 10 V
0 ... 20 mA
4 ... 20 mA
|
| Isolation AC/DC: |
up to 300 V
|
| Test Voltage: |
3 kV AC
|
| Power Supply: |
24 ... 110 V DC
|
| Ambient operating temperature: |
–40 ... 70 °C
|
| Dimensions (W x L x H): |
12.5 x 99 x 114.5 mm
|
| Special features: |
Decoupling of safety-related encoder signals for detecting the train’s speed from existing circuits
Safe decoupling acc. SIL 3 (IEC 61508)
Signal doubling omits the need to retrofit sensors
|
| Product Category: |
Sensor Transmitter
Signal Multiplier
|
Norms
Downloads
Brochures
Certificates
Our service
Used in Process or Applications
Related Products
A20210
Input: Shunt voltages up to ±1000 mV, Thermocouples, Resistors, Resistance thermometers
Isolation AC/DC: up to 300 V
A20220
Isolation AC/DC: up to 300 V
A20230
Input: Potentiometers, Resistors
Isolation AC/DC: up to 300 V
P16000
Input: Speed sensor signal, 0 ... 0.5 kHz, 0 ... 1 kHz, 0 ... 2 kHz, 0 ... 5 kHz, 0 ... 10 kHz, 0 ... 20 kHz
Isolation AC/DC: up to 300 V

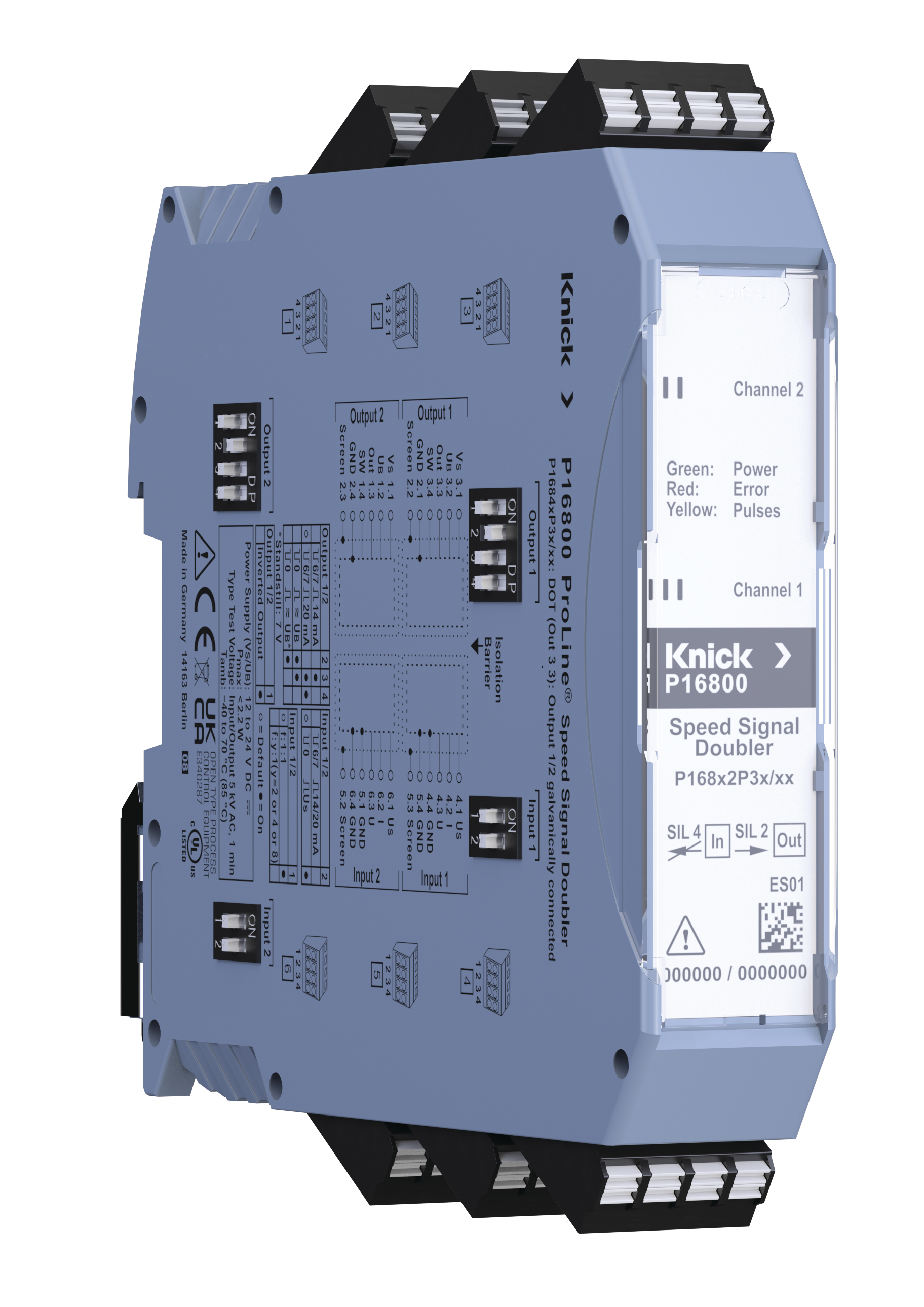

P16800
Input: Speed sensor signals 10 ... 33.6 V DC (max. 35 V) with Low: < 30 %, High: > 70 %, Speed sensor signals 6/7 ... 14/20 mA (max. 200 mA) with Low: < 8.5 mA, High: > 12.5 mA
Isolation AC/DC: up to 1,000 V

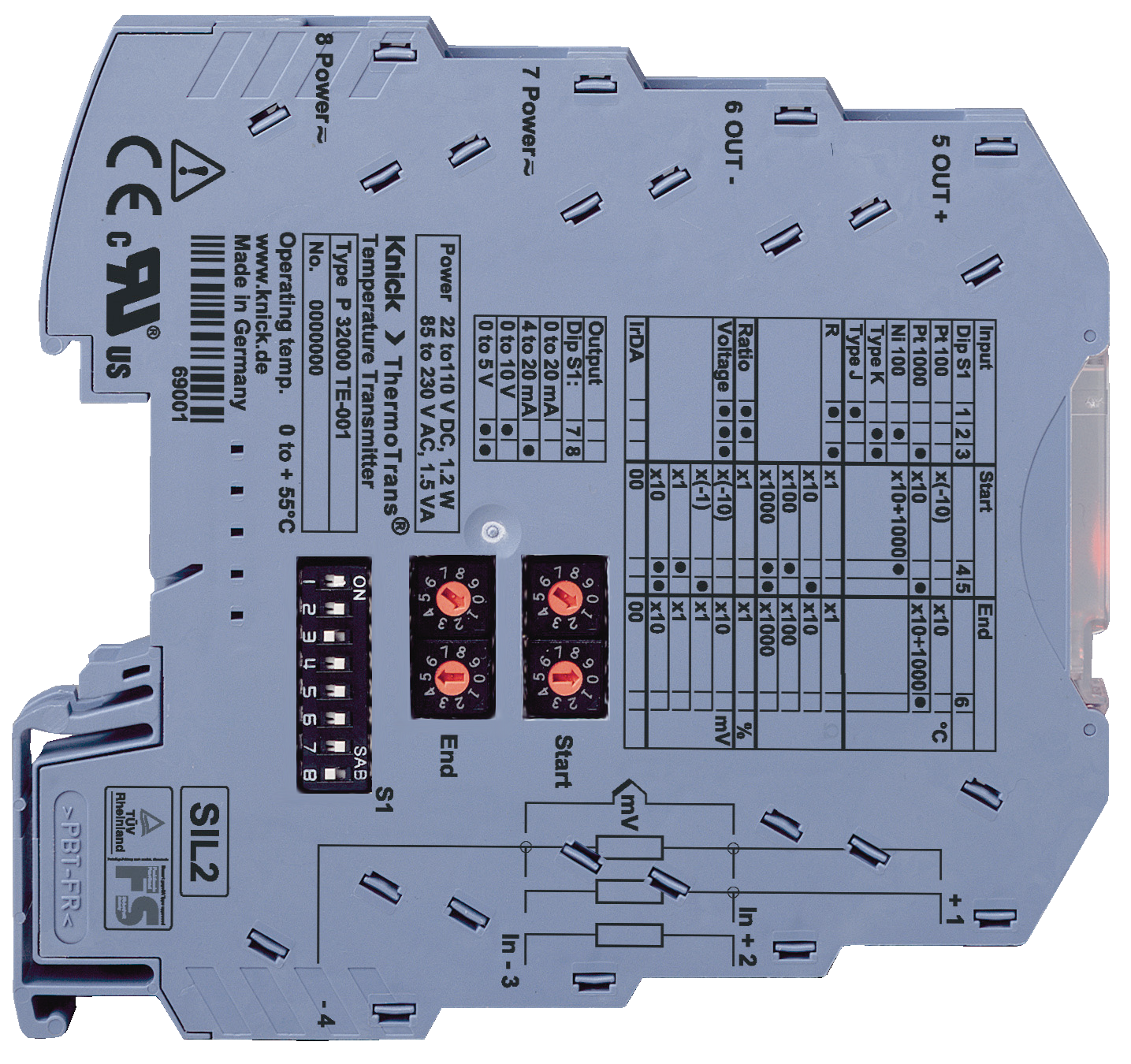

P32000
Input: Shunt voltages up to ±1000 mV, Potentiometers, Thermocouples, Resistors, Strain gauges, Resistance thermometers
Isolation AC/DC: up to 300 V
P32100
Input: Shunt voltages up to ±1000 mV, Thermocouples, Resistors, Resistance thermometers
Isolation AC/DC: up to 300 V
P32200
Input: Load cells, Strain gauges
Isolation AC/DC: up to 300 V

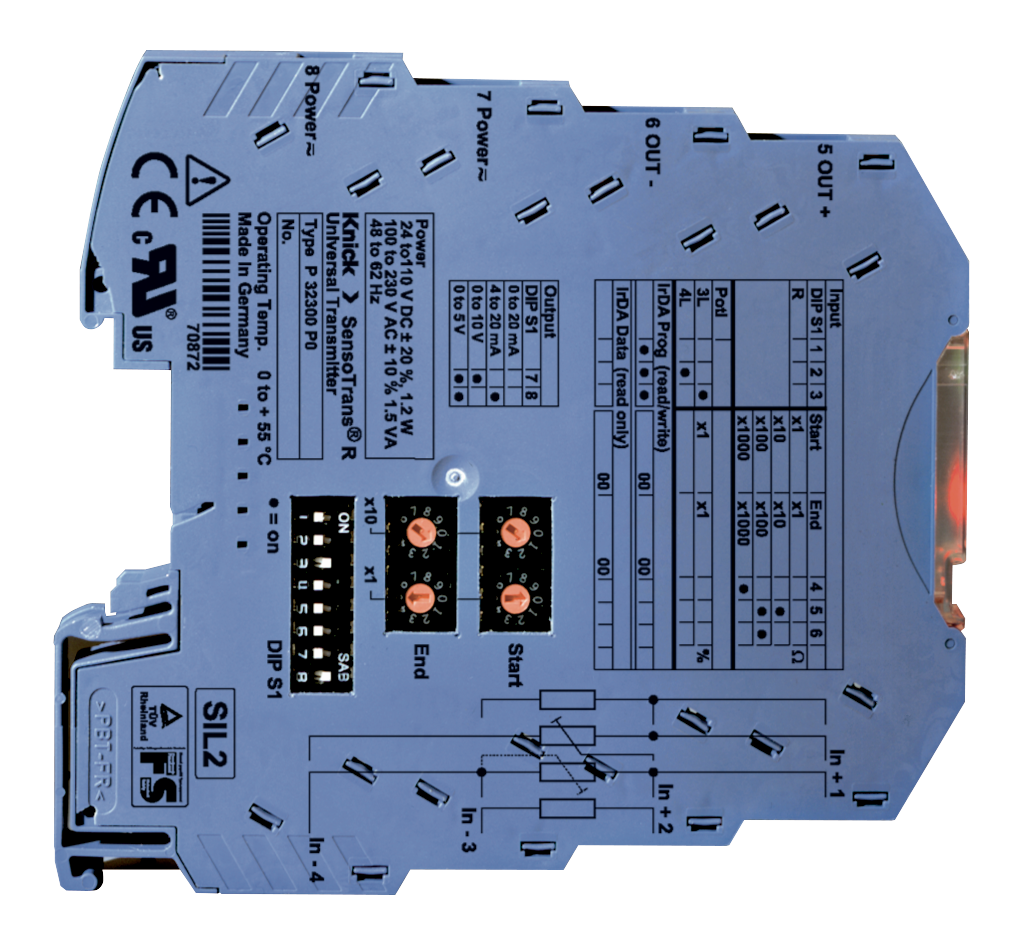

P32300
