High Voltage Transducers
Current, voltage, and temperature measurement with high insulation, high-precision measurement for billing DC energy and detection of applied voltages
Function: Voltage measurement, Current measurement via shunt resistor
Isolation AC/DC: up to 1,000 V
Function: High voltage measurement
Isolation AC/DC: 2,200 V, up to 3,600 V
Function: High voltage measurement
Isolation AC/DC: up to 3,600 V AC, 4,800 V DC
Function: Current measurement via shunt resistor on high potential
Isolation AC/DC: up to 3,600 V
Function: True-RMS of AC voltages
Isolation AC/DC: 2,200 V, up to 3,600 V
Function: Current measurement via shunt resistor on high potential
Isolation AC/DC: up to 4,800 V
Function: High voltage measurement
Isolation AC/DC: up to 4,800 V
Function: Shunt resistor for current measurement
Function: Temperature measurement
Isolation AC/DC: up to 2,000 V, up to 6,600 V
Function: True-RMS of AC currents via shunt resistor
Isolation AC/DC: up to 3,600 V
Function: Voltage monitor / Voltage-free message
Isolation AC/DC: up to 4,800 V
Function: Current and overcurrent measurement via shunt resistor
Isolation AC/DC: up to 3,600 V
Function: True-RMS of AC currents
Isolation AC/DC: up to 3,600 V
Function: Current measurement on high potential
Isolation AC/DC: up to 3,600 V

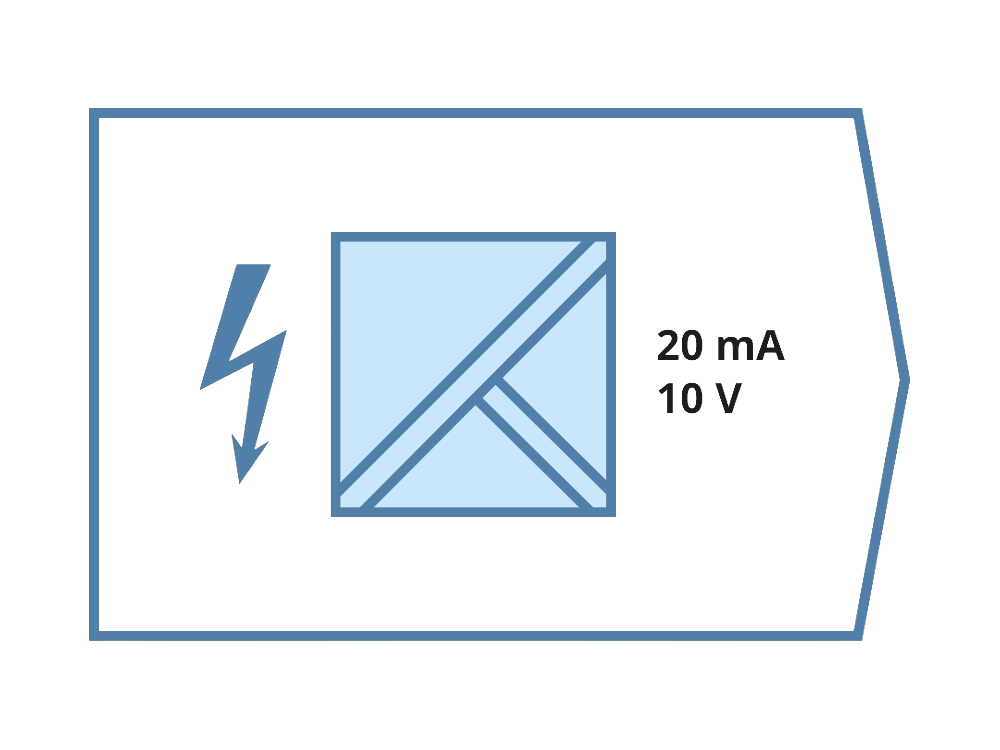

Highly insulated voltage and current transducers and temperature transmitters
In high-voltage environments with several thousand volts, our highly insulated voltage and current transducers and temperature transmitters rely on perfect galvanic isolation to ensure the highest safety possible for persons and systems. The motor generators for DC and AC voltages can also be used for precise energy measurement for billing. Moreover, the range includes voltage presence detectors (VPD) with insulation of up to 4800 V that detect and report dangerous voltages applied in high-voltage environments. For current measurement up to the kA range, the accessory range offers shunt resistors with low voltage drops, a high level of accuracy, and high overload capacity.
