SE555 pH Sensor | Coax (S8) | 120 mm | Ex | Sterilizable | For aggressive media
Description
Sterilizable pH sensor providing high reliability and precision.
- Gel electrolyte, pressurized
- Ceramic junction
- Silver ion trap
- Integrated temperature detector
- pH glass with high impedance for high-temperature applications, low alkali error
- CIP/SIP-capable

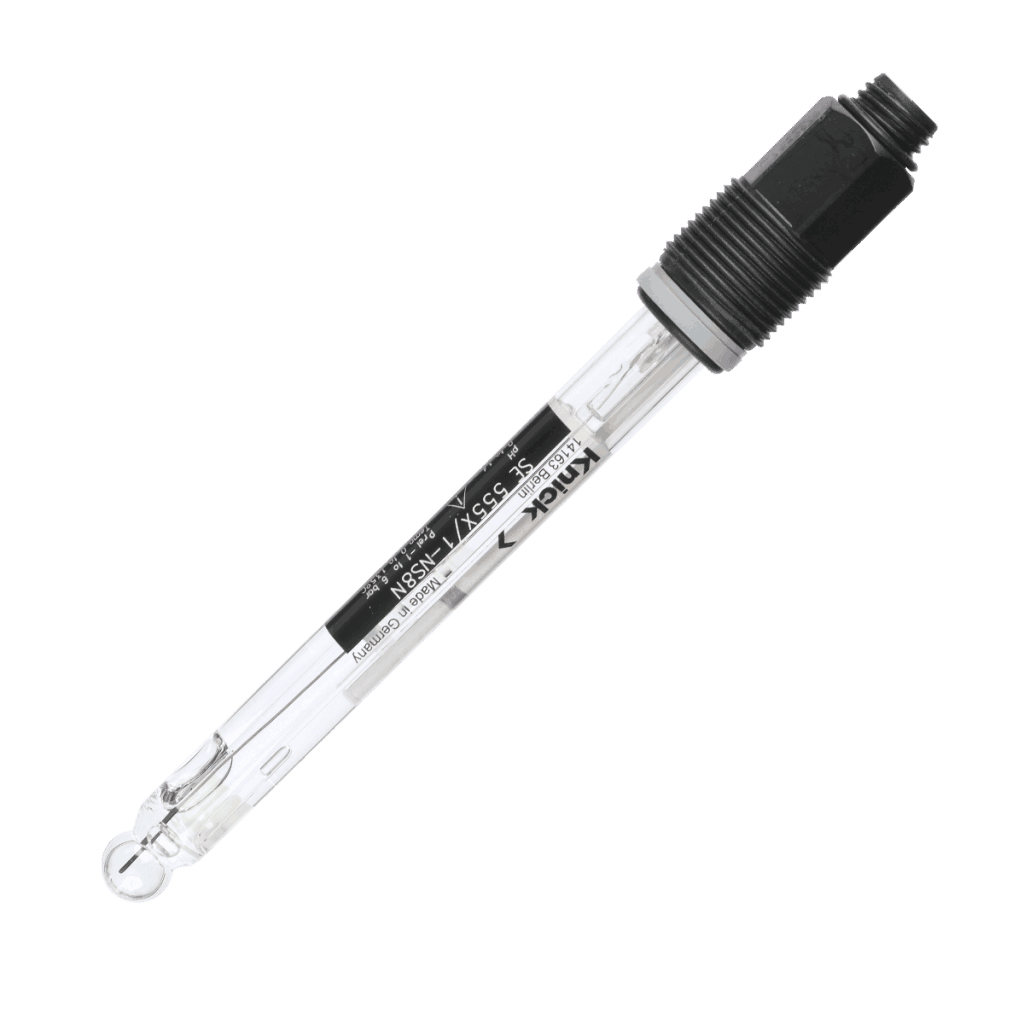

The SE555X/1-NS8N pH sensor comes with a special pH glass with high impedance for high-temperature applications and a low alkali error. The sensor is CIPand SIP-capable. The silver ion trap prevents silver sulfide precipitation and junction fouling in media containing sulfides. This makes the sensor ideal for routine applications in food processing and biotechnology.
Applications
Fermentation, food and beverages, aggressive media, extreme pH values
Nous attendons avec impatience votre réponse!
Nous Contacter

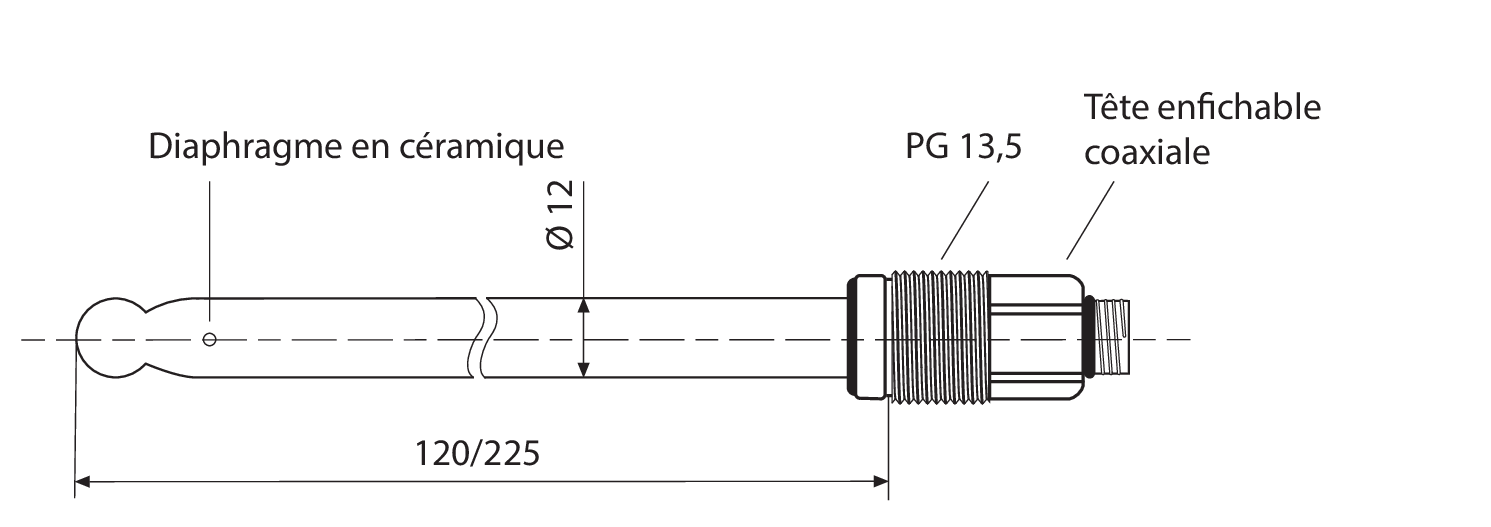

Diaphragme: | Céramique, 1x |
---|---|
Paramètres de mesure: | pH |
Pression relative: | -1 … 6 bar |
Raccordement process: | PG 13,5 |
Système de référence: | Ag/AgCl avec barrière aux ions argent |
Température: | 0 … 135 °C |
Verre pH: | Verre Oméga, impédance élevée, faible erreur alcaline |
Électrolyte : | Prepressurized gel electrolyte |
Longueur : | 120 mm |
Tête enfichable: | DIN Koax (S8) |
Plage de mesure: | pH 0 ... 14 |
Protection contre les explosions: | Oui |
