SE603 4-Electrode Conductivity Sensor | Fixed cable | Very high corrosion resistance

Description

SE603 4-Electrode Conductivity Sensor | Fixed cable | Very high corrosion resistance

4-electrode sensor with large measuring range providing maximum corrosion resistance, sensor materials: PTFE and platinum.

  • High level of chemical resistance due to corrosion-proof materials
  • Large measuring range due to 4-electrode technology
  • Measurement at high temperatures and pressures
  • Slim, ultracompact design

For special chemistry applications, universal measuring range from pure water to 600 mS/cm. With fixed cable and integrated temperature detector. Process-wetted materials: PTFE and platinum. Ultracompact design.

Nous attendons avec impatience votre réponse!
Nous Contacter

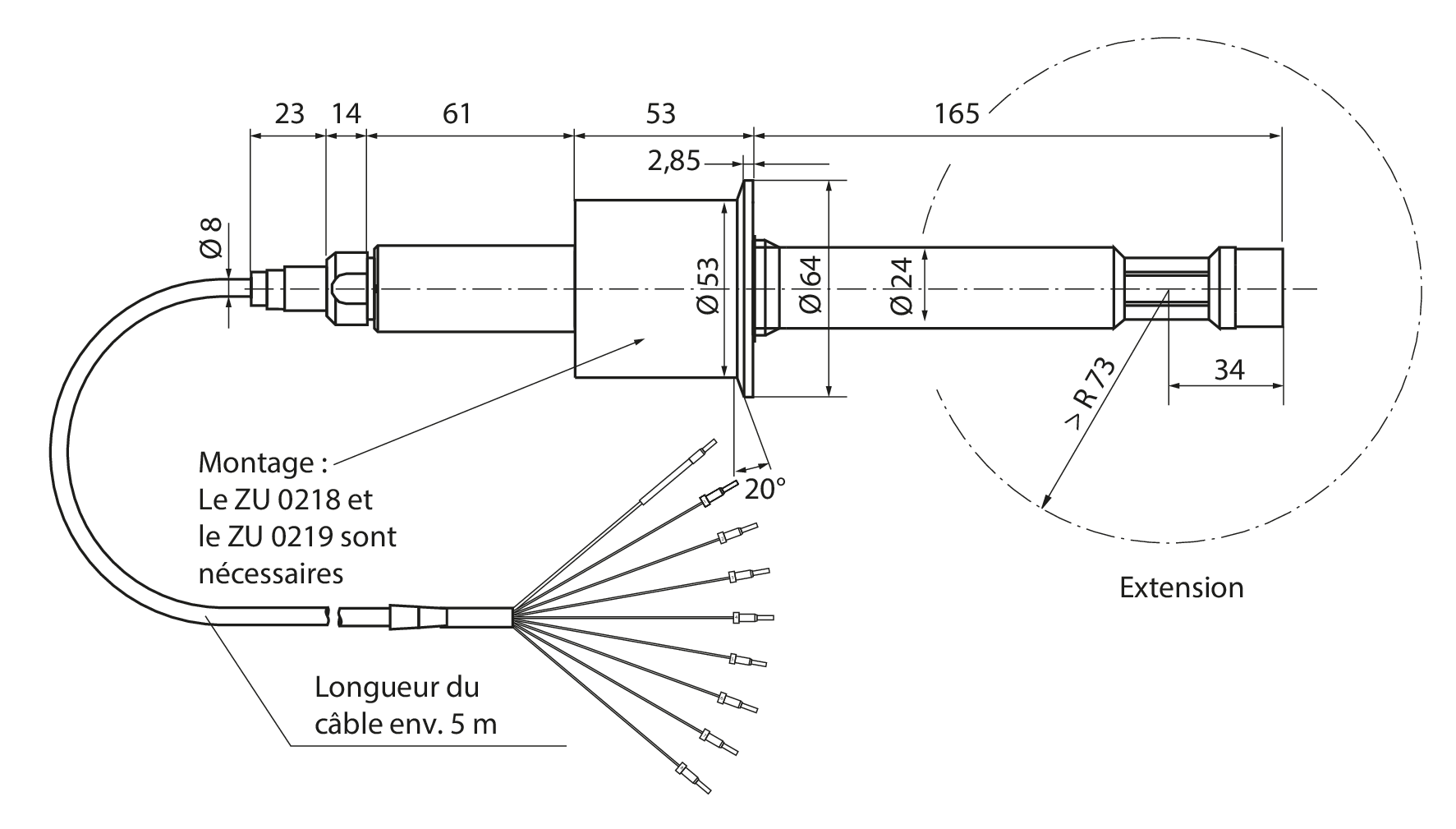

Détails techniques

Constante de cellule: 0,14 ... 0,38 cm (valeur exacte indiquée sur la plaque signalétique)
Câble: Câble fixe, 5 m
Matériau d'électrode: Platine
Matériau de la tige: PTFE
Paramètres de mesure: conductivité (conductive)
Plage de mesure: env. 0,5 μS/cm ... 600 mS/cm
Pression: max. 12 bar
Principe de mesure: 4 électrodes
Raccordement process: Bride spéciale
Sonde de température: Pt1000 (classe IEC A)
Température: max. 120 °C

Téléchargements

Manuals

78357_KNX_SE603_s-283167

Brochures

[13395] Brochure
Sondes - Pour la mesure du pH/redox, de la conductivité et de l’oxygène. Numérique et analogique.

Fiches techniques

KAT_FR_SE_603_190519-1314425

Certificats

[14516] EU Declaration of Conformity (DE, EN, FR)
No. EU210621A | 2021-06-21
Analog Sensors, non Ex
