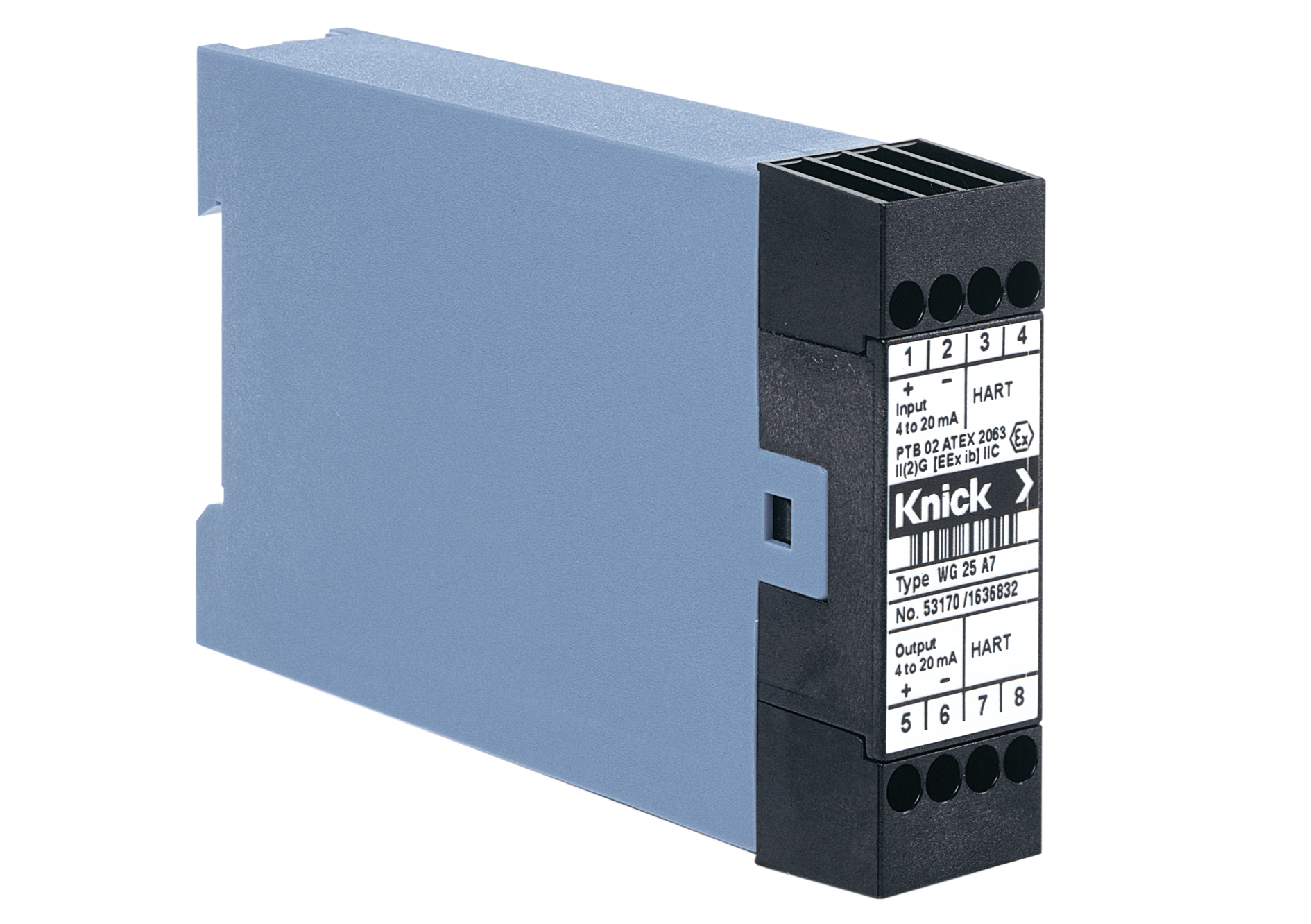

WG25 Amplificatore di isolamento di alimentazione senza alimentazione elettrica | Ex | Trasmissione di segnali HART

Per l’alimentazione di trasmettitori a 2 fili a sicurezza intrinseca e trasmettitori SMART.

  • Economico
    prezzo vantaggioso grazie all'eliminazione dell'alimentatore integrato
  • Non richiede alimentazione di rete
    riduzione dei costi grazie al basso sforzo di cablaggio, all'eliminazione degli influssi di rete
  • Ridotta dissipazione di potenza
    nessun riscaldamento inutile nell'armadio elettrico
  • Isolamento sicuro
    in conformità alla norma EN 61140 (VDE 0140): protezione del personale addetto alla manutenzione e dei dispositivi a valle contro le elevate tensioni non ammesse
  • Trasmissione HART
    trasmissione bidirezionale punto-punto di dati digitali secondo la specifica HART
  • Testato CEM
    soppressione delle interferenze radio e protezione dalle tensioni a impulsi, funzionamento affidabile anche in presenza di disturbi elettromagnetici
  • Massima affidabilità
    eliminazione degli interventi di manutenzione e dei rispettivi costi
  • Garanzia di 5 anni

Compito
Il sezionatore di alimentazione passivo WG25 funziona senza alimentazione elettrica. Viene utilizzato per l'isolamento galvanico Ex di un cavo di alimentazione a 2 fili e trasmette sia segnali 4 ... 20 mA sia segnali HART in ogni direzione. Con una caduta di tensione di soli 4,2 V, il dispositivo WG25 sfrutta in modo ottimale l'alimentazione, consentendo di collegare tutti i comuni trasmettitori a 2 fili.

Vantaggi
Rispetto ai sezionatori di alimentazione attivi, i vantaggi in termini di prezzo e affidabilità sono notevoli. Ad esempio, anche nei sistemi multicanale è sufficiente un'unità di alimentazione centrale non-Ex, che non deve nemmeno avere un isolamento sicuro.

Tecnologia
Grazie alla tecnologia TransShield di Knick, il dispositivo WG25 mostra prestazioni finora mai raggiunte dai sezionatori di alimentazione passivi:

  • affidabilità estremamente elevata, MTTF superiore a 300 anni
  • isolamento sicuro, protezione dai transitori
  • tensione di prova di 10 kV (opzionale)
  • elevata compatibilità elettromagnetica
  • ripple residuo e influenza delle interferenze di modo comune estremamente bassi
  • eccellente mappatura degli impulsi
  • trasmissione HART
  • isolamento Ex/non-Ex

Non vediamo l'ora di ascoltarvi!
Contatto

Dettagli tecnici

Comunicazione (Uscita, digitale): HART
Protezione contro le esplosioni:
Separazione del potenziale AC/DC: Fino a 1.000 V
Temperatura ambiente: –10 ... 50 °C
Funzione: Trasmissione di segnali e alimentazione di sensori a 2 fili
Ingresso: 4 ... 20 mA
Uscita: 4 ... 20 mA
Tensione di prova: 4 kV AC
Alimentazione di tensione: Senza alimentazione ausiliaria
Dimensioni (largh. x lungh. x alt.): 22,5 x 73,5 x 118,2 mm
Caratteristiche speciali: ATEX: II (1) G [EEx ia] IIC, Trasmissione di segnali HART
Categoria di prodotto: Sezionatore universale / sezionatore di segnale standard
